Phase One iXM-RS Camera Series

Description

[spb_text_block animation=”none” animation_delay=”0″ simplified_controls=”yes” custom_css_percentage=”no” padding_vertical=”0″ padding_horizontal=”0″ margin_vertical=”0″ custom_css=”margin-top: 0px;margin-bottom: 0px;” border_size=”0″ border_styling_global=”default” width=”1/1″ el_position=”first last”]

Boost Your Productivity with a Wider Aerial Coverage

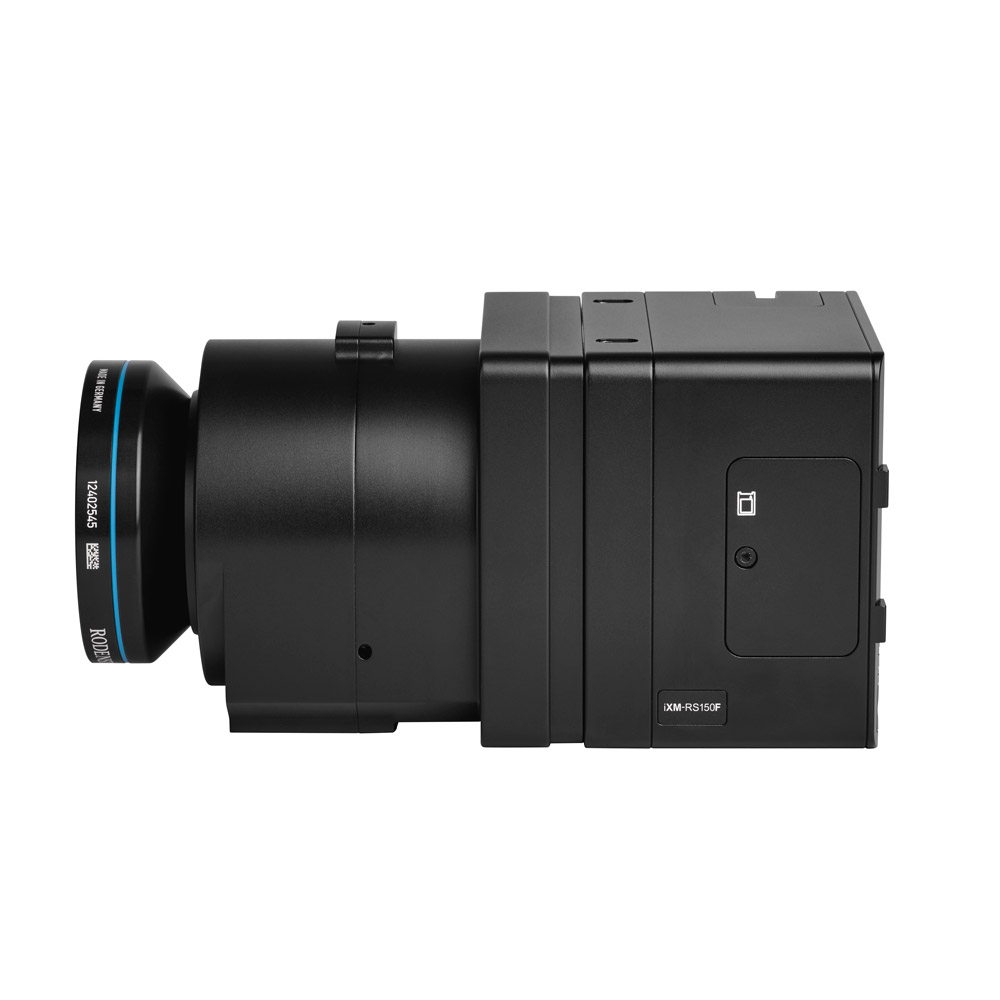

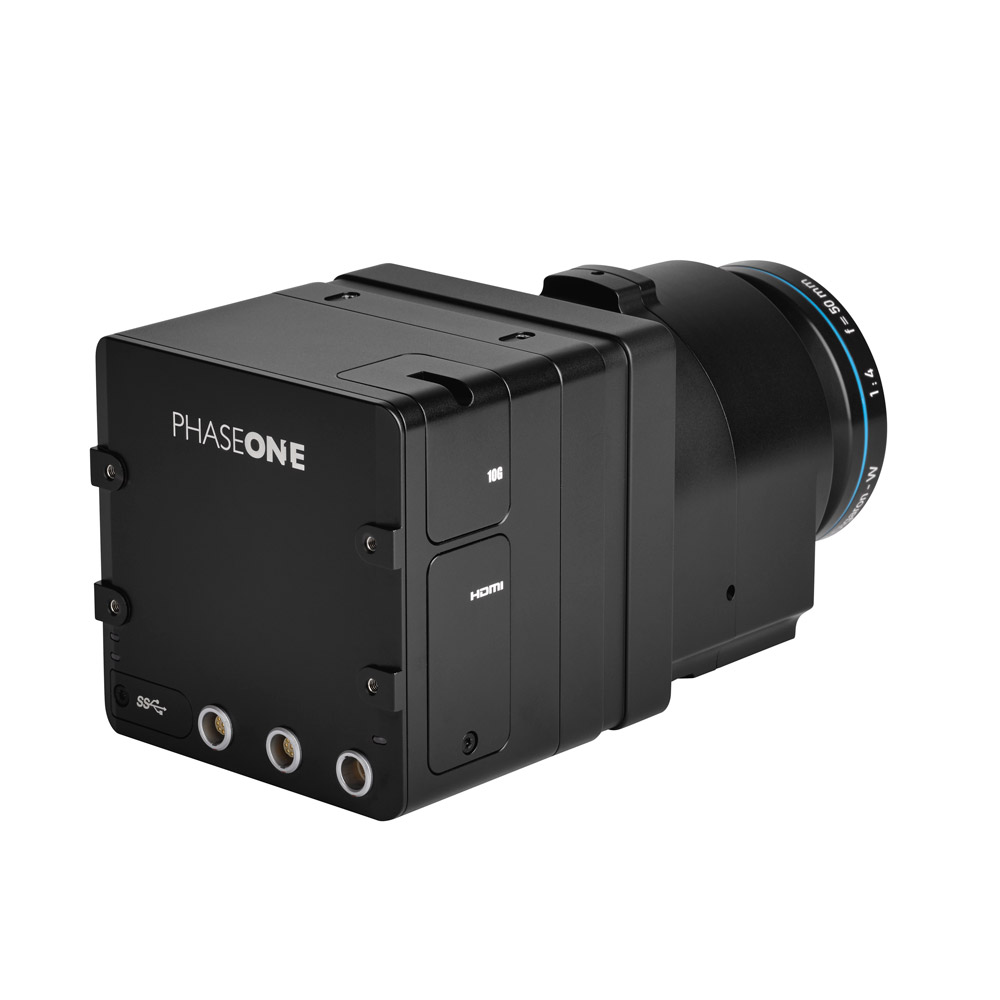

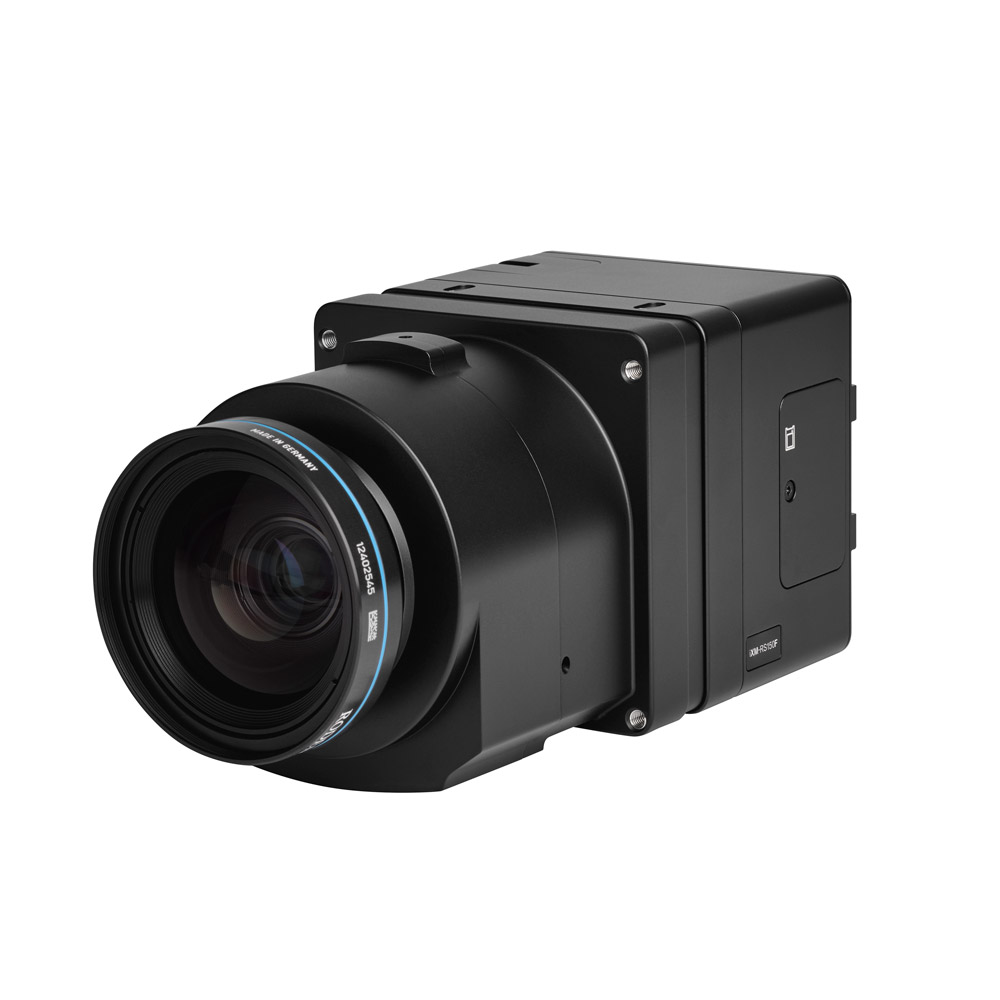

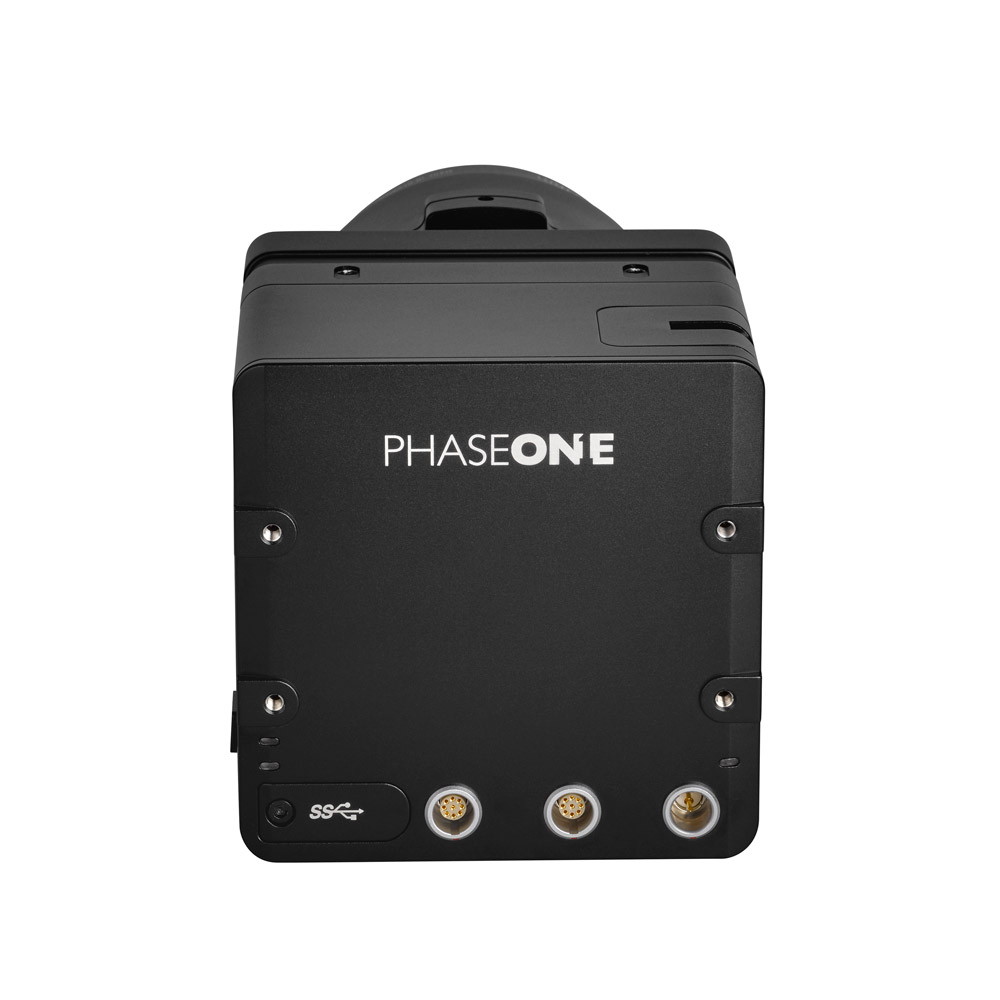

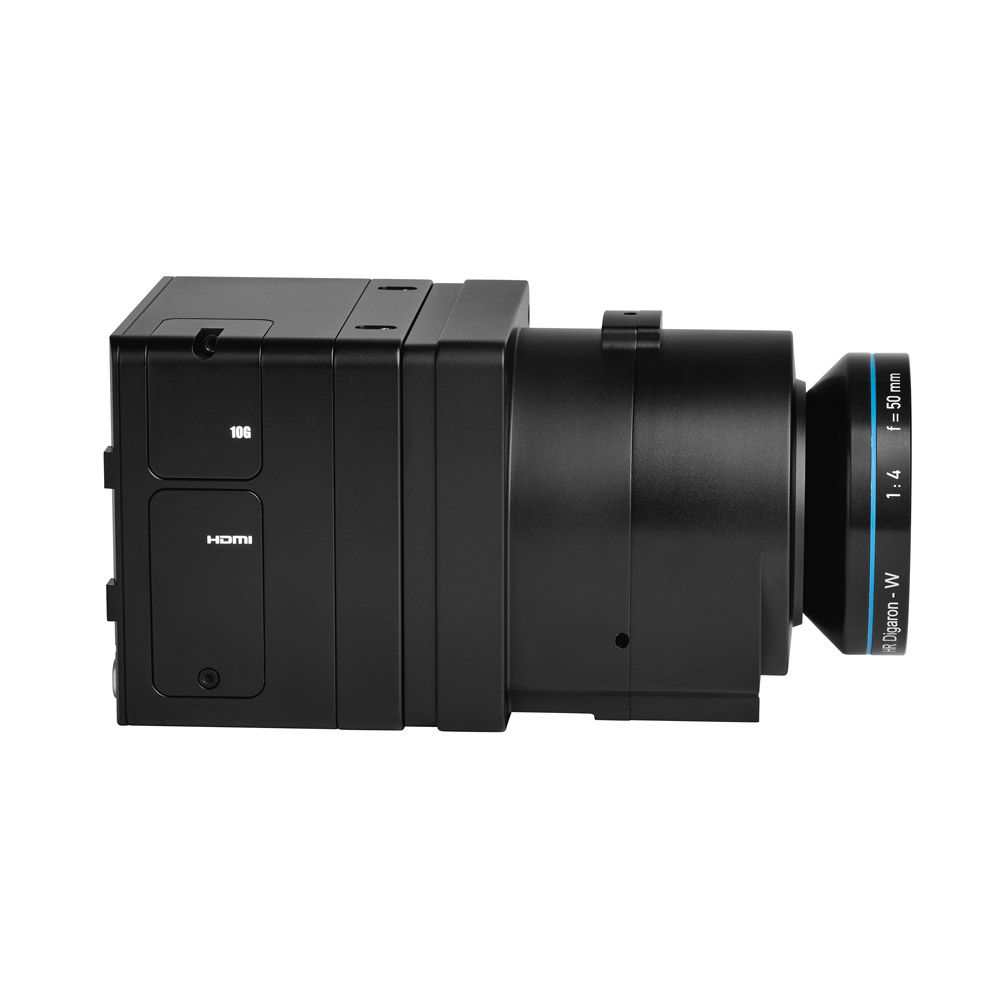

iXM-RS150F is a full frame 150MP camera available in RGB and Achromatic models. Its ultra-high resolution, backside- illuminated CMOS sensor, fast capture speed and enhanced light sensitivity enable increased productivity in a wide range of aerial image acquisition projects.

The iXM-RS150F camera is the imaging heart of Phase One Industrial’s Aerial System — a fully integrated solution for mapping and surveying.

iXM-RS150F camera feature Phase One Industrial’s proven RS lens series with seven field replaceable focal length options, ranging from 32mm to 150mm.

[/spb_text_block] [spb_blank_spacer height=”30px” width=”1/1″ el_position=”first last”] [spb_row element_name=”Row” wrap_type=”full-width-contained” row_bg_type=”color” row_bg_color=”#121212″ color_row_height=”content-height” row_style=”light” bg_type=”cover” parallax_image_height=”content-height” parallax_image_movement=”fixed” parallax_image_speed=”standard” bg_video_loop=”yes” parallax_video_height=”window-height” row_top_style=”none” row_bottom_style=”none” parallax_video_overlay=”none” row_overlay_opacity=”0″ remove_element_spacing=”no” row_col_spacing=”0″ row_col_pos=”default” row_col_equal_heights=”no” row_expanding=”no” row_animation=”none” row_animation_delay=”0″ minimize_row=”no” simplified_controls=”no” custom_css_percentage=”no” custom_css=”margin-top: 0px;margin-bottom: 50px;padding-top: 100px;padding-bottom: 100px;” border_styling_global=”default” width=”1/1″ el_position=”first last”] [spb_text_block animation=”none” animation_delay=”0″ simplified_controls=”yes” custom_css_percentage=”no” padding_vertical=”0″ padding_horizontal=”0″ margin_vertical=”0″ custom_css=”margin-top: 0px;margin-bottom: 0px;” border_size=”0″ border_styling_global=”default” width=”1/1″ el_position=”first last”]

iXM-RS Camera Brochure

[/spb_text_block] [spb_button element_name=”PDF Brochure” button_text=”Download IXM-RS Brochure” button_size=”large” button_colour=”accent” button_type=”standard” rounded=”no” button_dropshadow=”no” button_link=”https://koi-3QNCNHKVAQ.marketingautomation.services/net/m?md=FV41cwWzXECAA65Z0JYiqX3GCTd9%2BsGn” button_target=”_blank” align=”center” animation=”none” animation_delay=”0″ width=”1/1″ el_position=”first last”] [/spb_row] [spb_row element_name=”iXM 100MP and iXM 50MP Technical Specifications” wrap_type=”full-width-contained” row_bg_type=”color” color_row_height=”content-height” bg_type=”cover” parallax_image_height=”content-height” parallax_image_movement=”fixed” parallax_image_speed=”standard” bg_video_loop=”yes” parallax_video_height=”window-height” row_top_style=”none” row_bottom_style=”none” parallax_video_overlay=”none” row_overlay_opacity=”0″ remove_element_spacing=”no” row_col_spacing=”0″ row_col_pos=”default” row_col_equal_heights=”no” row_expanding=”no” row_expading_text_closed=”Show iXU-RS 1900 Camera Specifications” row_expading_text_open=”Close Camera Specifications” row_animation=”none” row_animation_delay=”0″ minimize_row=”no” simplified_controls=”yes” custom_css_percentage=”no” padding_vertical=”0″ padding_horizontal=”0″ margin_vertical=”0″ custom_css=”margin-top: 0px;margin-bottom: 0px;” border_size=”0″ border_styling_global=”default” width=”1/1″ el_position=”first last”] [spb_text_block animation=”none” animation_delay=”0″ simplified_controls=”yes” custom_css_percentage=”no” padding_vertical=”0″ padding_horizontal=”0″ margin_vertical=”0″ custom_css=”margin-top: 0px;margin-bottom: 0px;” border_size=”0″ border_styling_global=”default” width=”1/1″ el_position=”first last”]

iXM-RS150F and iXM-RS100F Technical Specifications

[/spb_text_block] [spb_text_block animation=”none” animation_delay=”0″ simplified_controls=”yes” custom_css_percentage=”no” padding_vertical=”0″ padding_horizontal=”0″ margin_vertical=”0″ custom_css=”margin-top: 0px;margin-bottom: 0px;” border_size=”0″ border_styling_global=”default” width=”1/1″ el_position=”first last”]

Camera	iXM-RS150F	iXM-RS150F Achromatic	iXM-RS100F	iXM-RS100F Achromatic
Resolution	150MP 14204×10652	“	100MP 11608×8708	“
Dynamic range	83dB	“	84dB	“
Aspect ratio	4:3	“	“	“
Pixel size	3.76µm	“	4.6µm	“
Effective sensor size	53.4x40mm	“	“	“
Light sensitivity (ISO)	50-6400	200-25600	50-6400	200-12800
Capture rate	2fps	“	1.6fps	“
Camera type	Medium-format camera for aerial imaging	“	“	“
Lens mount	Phase One RS	“	“	“
Data interfaces	USB3, Ethernet 10G	“	“	“
I/O interfaces	Trigger, Mid exposure, Ready, Serial	“	“	“
HDMI	1920×1080 60p	“	“	“
Data storage	XQD card	“	“	“
Synchronization speed	50 microseconds in an array of cameras	“	“	“
Raw file compression 14bit	IIQ large: 150MB IIQ small: 100MB	“	IIQ large: 100MB IIQ small: 65MB	“
IR cut-off filter	Yes	Yes, optional with clear glass	Yes	IIQ large: 150MB IIQ small: 100MB
Connection to pod	4xM4 bolts	“	“	“
Power input	12 – 30 VDC	“	“	“
Max. Power consumption	16W	“	“	“
Weight (excluding lens)	1000gr	“	“	“
Dimensions (Excluding lens)	90x90x91mm	“	“	“
Approvals	FCC Class A, CE, RoHS	“	“	“
Temperature	-10°C to 40°C	“	“	“
Humidity	15% – 80% (non-condensing)	“	“	“

[/spb_text_block] [/spb_row] [spb_row element_name=”RSM Lenses – Technical Specifications” wrap_type=”standard-width” row_bg_type=”color” color_row_height=”content-height” bg_type=”cover” parallax_image_height=”content-height” parallax_image_movement=”fixed” parallax_image_speed=”standard” bg_video_loop=”yes” parallax_video_height=”window-height” row_top_style=”none” row_bottom_style=”none” parallax_video_overlay=”none” row_overlay_opacity=”0″ remove_element_spacing=”no” row_col_spacing=”0″ row_col_pos=”default” row_col_equal_heights=”no” row_expanding=”no” row_expading_text_closed=”Show iXU-RS 1900 Camera Specifications” row_expading_text_open=”Close Camera Specifications” row_animation=”none” row_animation_delay=”0″ minimize_row=”no” simplified_controls=”yes” custom_css_percentage=”no” custom_css=”margin-top: 0px;margin-bottom: 0px;” border_styling_global=”default” width=”1/1″ el_position=”first last”] [spb_image image=”77589″ image_size=”full” frame=”noframe” caption_pos=”hover” remove_rounded=”yes” fullwidth=”no” overflow_mode=”none” link_target=”_self” lightbox=”no” intro_animation=”none” animation_delay=”200″ width=”1/1″ el_position=”first last”][/spb_image] [spb_text_block animation=”none” animation_delay=”0″ simplified_controls=”yes” custom_css_percentage=”no” padding_vertical=”0″ padding_horizontal=”0″ margin_vertical=”0″ custom_css=”margin-top: 0px;margin-bottom: 0px;” border_size=”0″ border_styling_global=”default” width=”1/1″ el_position=”first last”]

RS Lenses – Technical Specifications

Technical Specs	32mm f/4	40mm f/4	50mm f/4	70mm f/5.6	90mm f/5.6	110mm f/4	150mm f/5.6
Lens composition	14 elements in 10 groups	10 elements in 7 groups	10 elements in 7 groups	9 elements in 7 groups	9 elements in 8 groups	6 elements in 5 groups	5 elements in 5 groups
Minimum focusing range	Infinity	Infinity	Infinity	Infinity	Infinity	Infinity	Infinity
Shutter speed max	Up to 1/2500	Up to 1/2500	Up to 1/2500	Up to 1/2500	Up to 1/2000	Up to 1/2500	Up to 1/2500
Exposure control	1/3 f-stop increments	1/3 f-stop increments	1/3 f-stop increments	1/3 f-stop increments	1/3 f-stop increments	1/3 f-stop increments	1/3 f-stop increments
Aperture range	f/4 – f/22	f/4 – f/22	f/4 – f/22	f/5.6 – f/22	f/5.6– f/22	f/4 – f/22	f/5.6 – f/22
Filter diameter	86mm	67mm	67mm	58mm	72mm	58mm	58mm
Total length [mm]	186	174.5	181	179	224	184	196
Weight [gr/lb]	970/ 2.13	730 / 1.60	800 / 1.76	580 / 1.27	1150 / 2.53	620 / 1.37	630 / 1.39
Angle of view (long side)	77.8	65	54.6	41.8	33	27.6	20.8
Angle of view (short side)	62.3	51	42.3	31.9	25.1	20.9	15.6
Entrance pupil to image plane[mm]	105.7	94.1	99.3	91.01	130.8	76.1	68.4

[/spb_text_block] [/spb_row]

Additional information

Weight	15000 g
Variant	iXM-RS100F – 150mm Camera kit, iXM-RS100F – 110mm Camera kit, iXM-RS100F – 90mm Camera kit, iXM-RS100F – 70mm Camera kit, iXM-RS100F – 50mm Camera kit, iXM-RS100F – 40mm Camera kit, iXM-RS100F – 32mm Camera kit, Upgrade 50/60/80MP to iXM-RS100F (Excluding lens), iXM-RS100F Achromatic – 150mm Camera kit, iXM-RS100F Achromatic – 110mm Camera kit, iXM-RS100F Achromatic – 90mm Camera kit, iXM-RS100F Achromatic – 70mm Camera kit, iXM-RS100F Achromatic – 50mm Camera kit, iXM-RS100F Achromatic – 40mm Camera kit, iXM-RS100F Achromatic – 32mm Camera kit, Upgrade 50/60/80MP to iXM-RS100F Achromatic (Excluding lens), iXM-RS150F – 150mm Camera kit, iXM-RS150F – 110mm Camera kit, iXM-RS150F – 90mm Camera kit, iXM-RS150F – 70mm Camera kit, iXM-RS150F – 50mm Camera kit, iXM-RS150F – 40mm Camera kit, iXM-RS150F – 32mm Camera kit, Upgrade 100MP to iXM-RS150F (Excluding lens), Upgrade 50/60/80MP to iXM-RS150F (Excluding lens), iXM-RS150F Achromatic – 150mm Camera kit, iXM-RS150F Achromatic – 110mm Camera kit, iXM-RS150F Achromatic – 90mm Camera kit, iXM-RS150F Achromatic – 70mm Camera kit, iXM-RS150F Achromatic – 50mm Camera kit, iXM-RS150F Achromatic – 40mm Camera kit, iXM-RS150F Achromatic – 32mm Camera kit, Upgrade 100MP to iXM-RS150F Achromatic (Excluding lens), Upgrade 50/60/80MP to iXM-RS150F Achromatic (Excluding lens)
Brand	Phase One
