Description

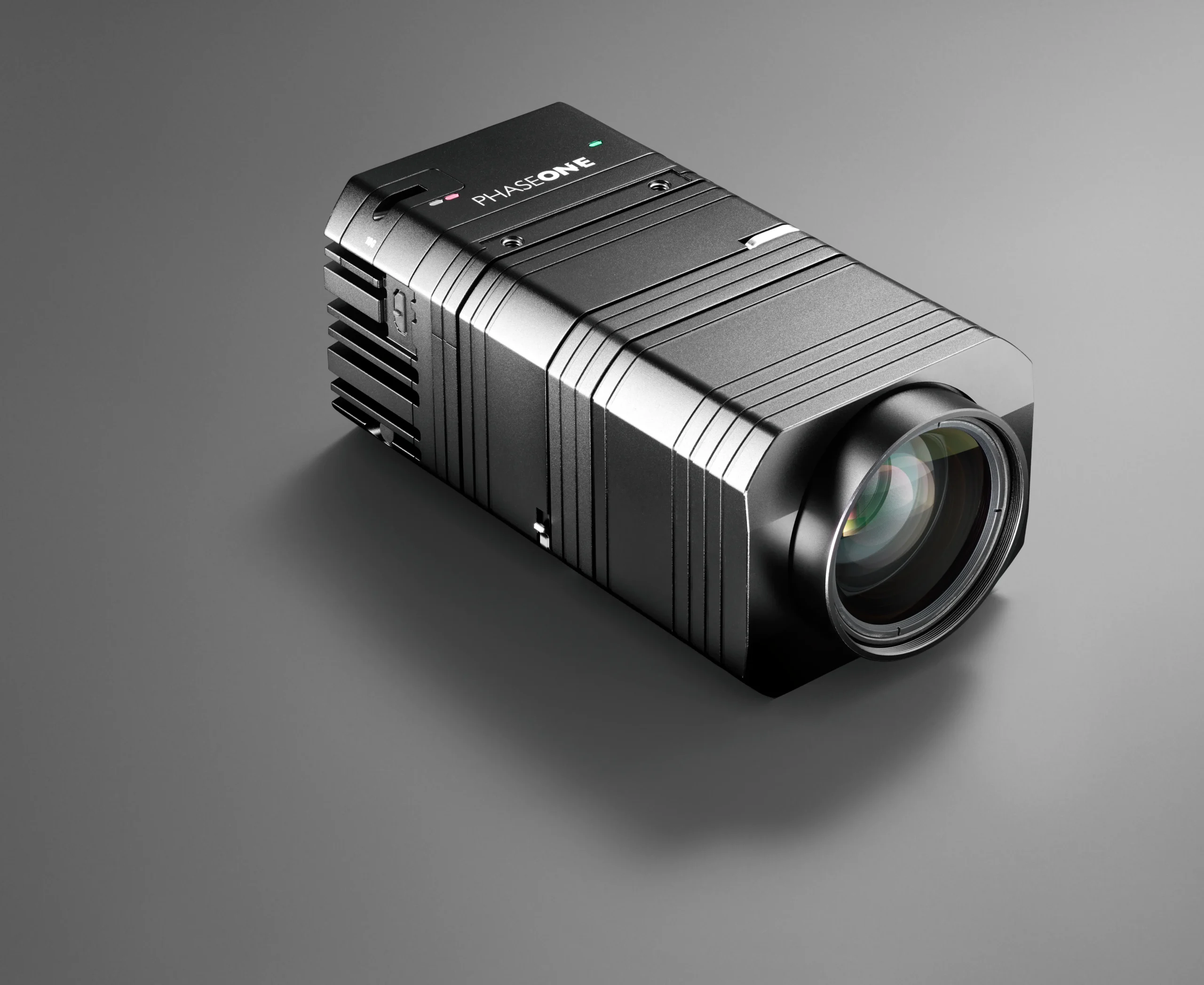

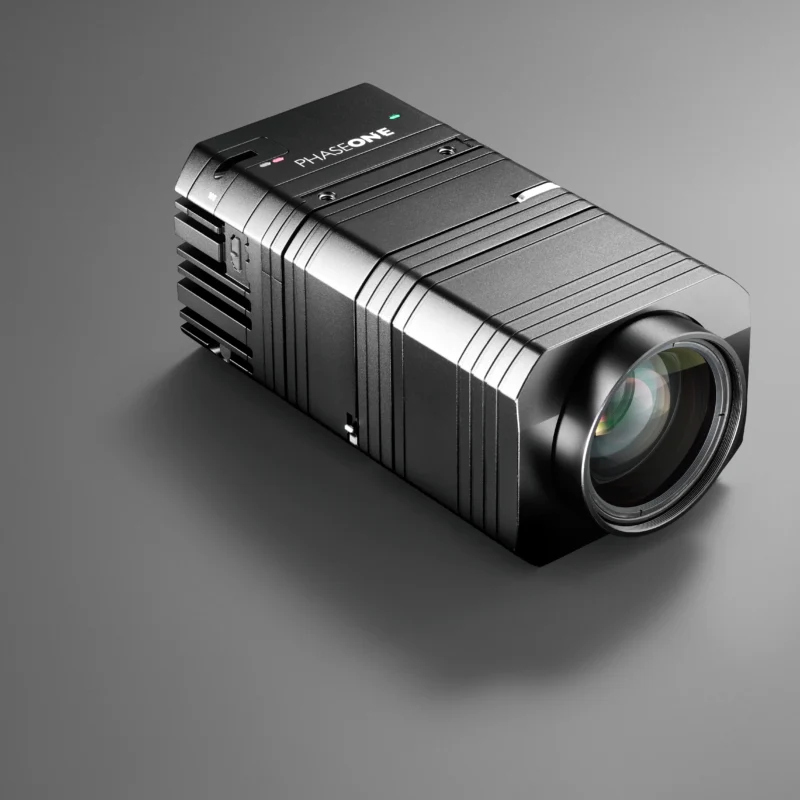

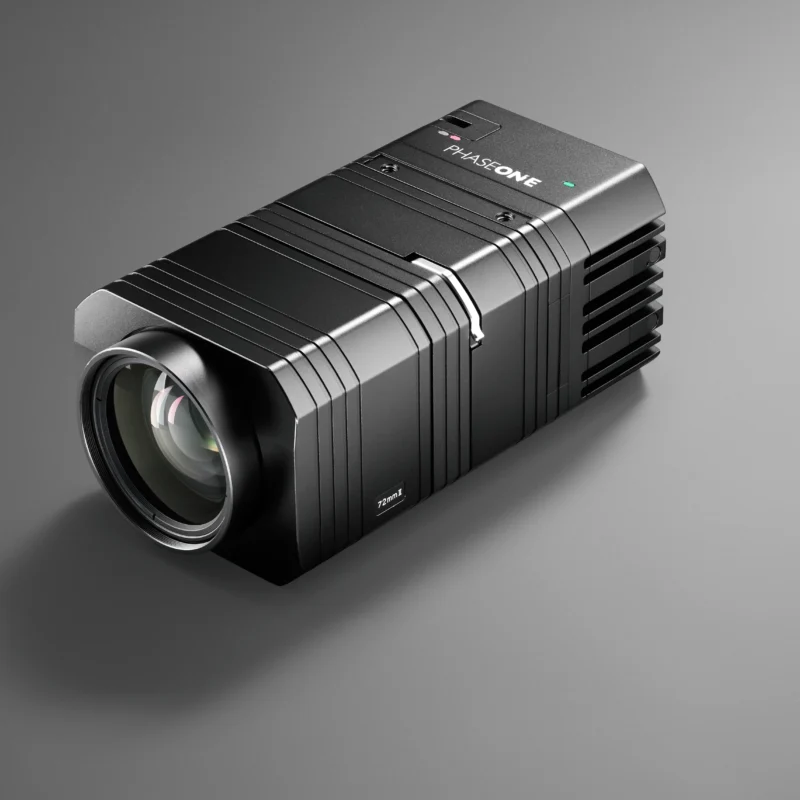

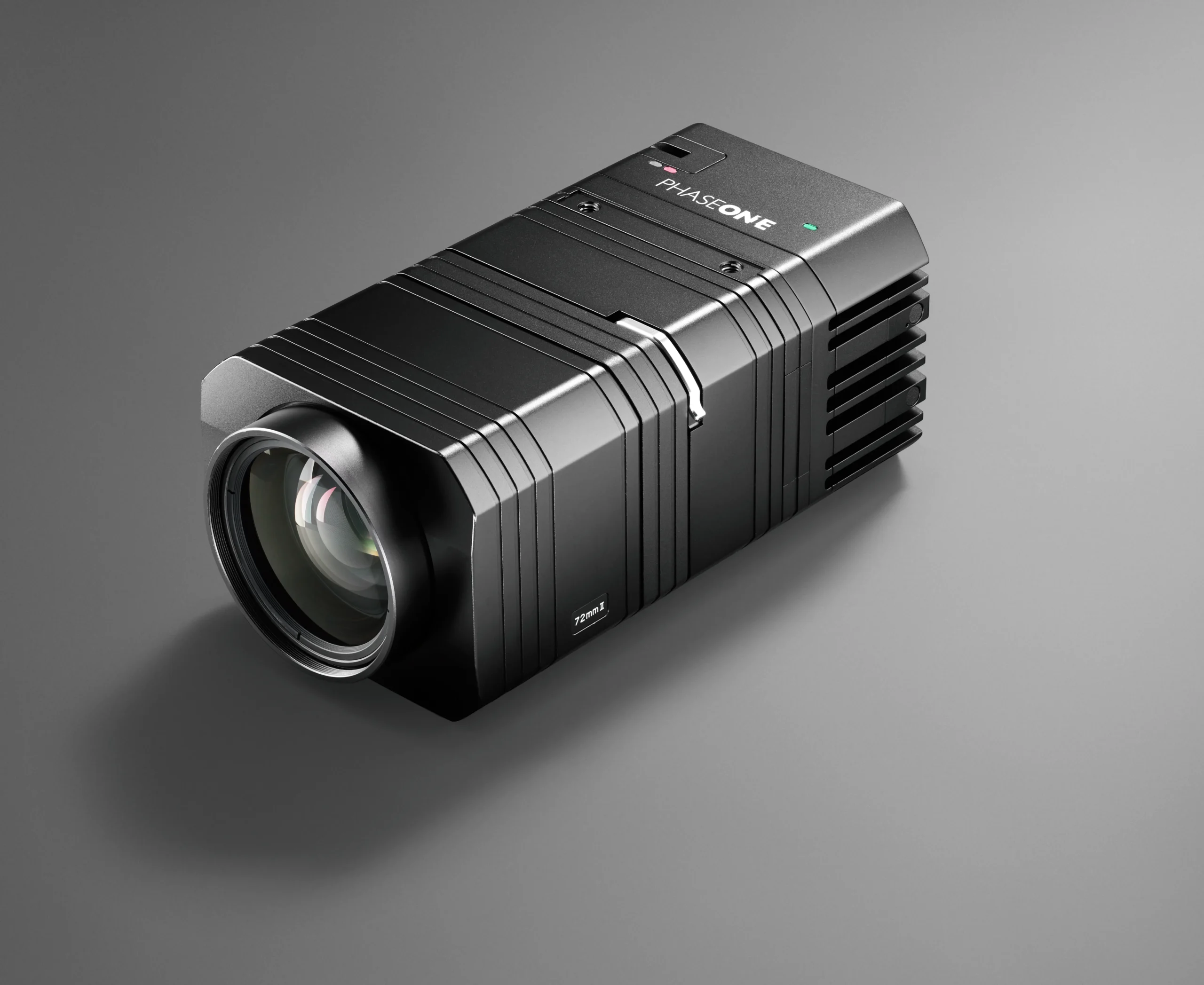

Experience the next generation of art digitisation with Phase One Heritage’s state-of-the-art solution, meticulously crafted for curators and archivists. Capture the true essence of your collection with unparalleled detail and clarity using our dedicated 100-megapixel camera and the versatile iXH 100MP camera system.

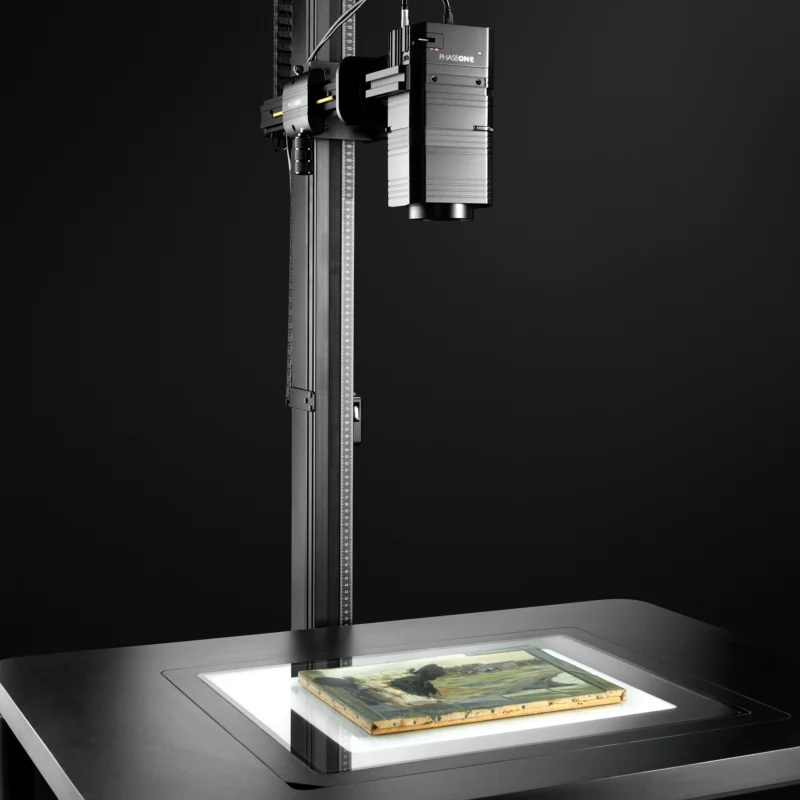

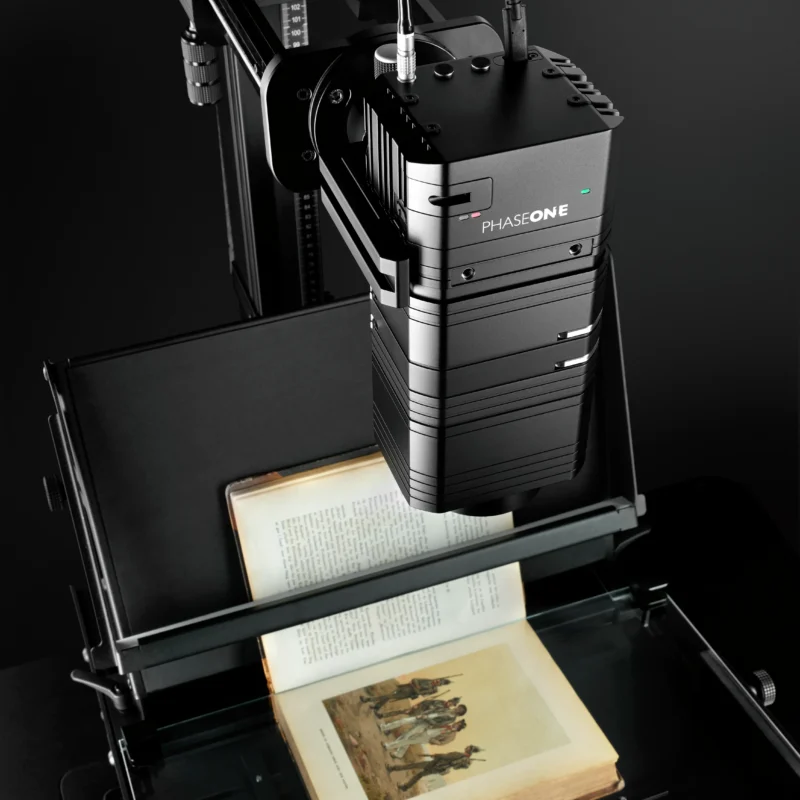

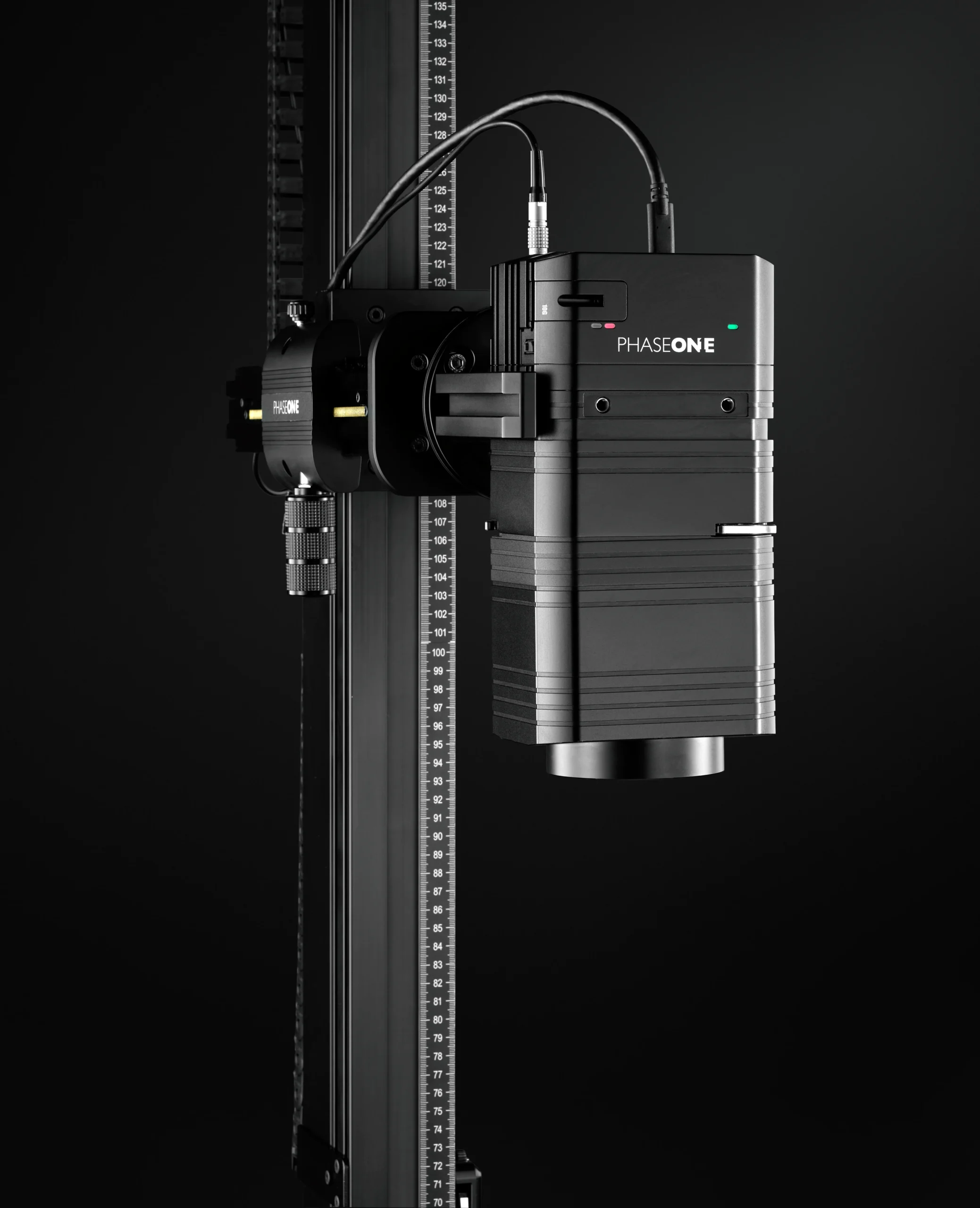

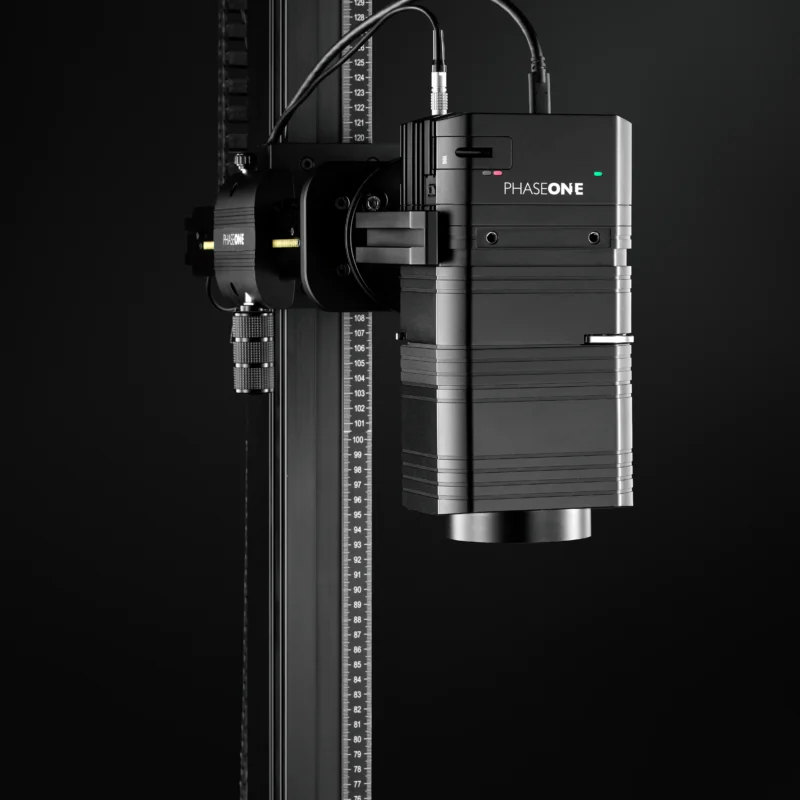

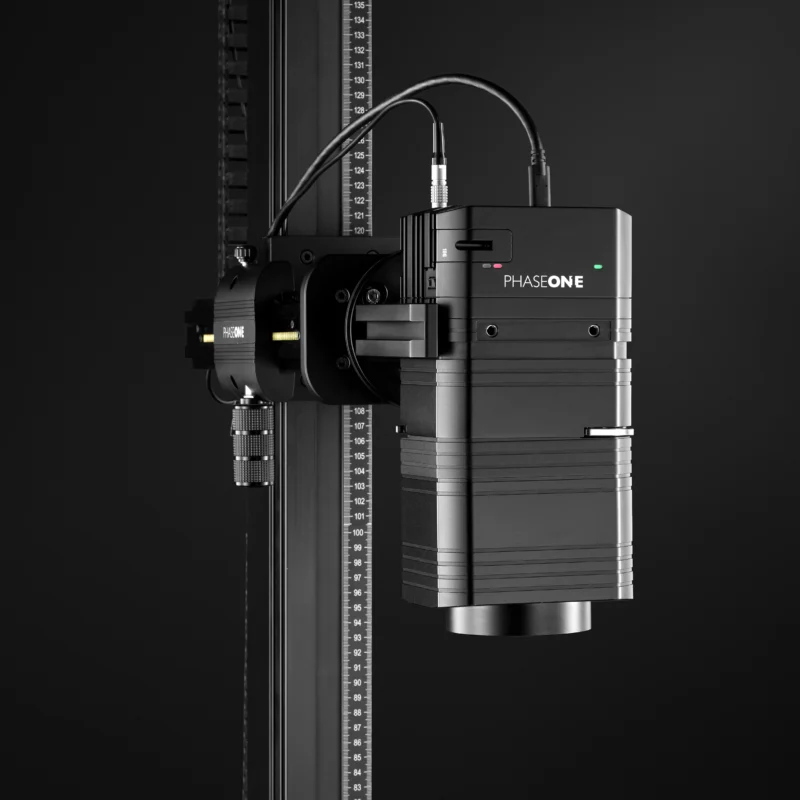

Choose the perfect configuration for your needs with floorstanding, table-top, or wall-mounted options, available in 72mm or 120mm sizes. Explore specialized kits like the iXH 100MP A1+ Repro Kit for book digitisation (manual or motorised) and the iXH 100MP Film Scanning Kit for preserving your film archives.
Key Features:
- Unmatched Fidelity: Preserve every nuance, texture, and detail of your artwork with life-like digital reproductions.
- Streamlined Efficiency: The iXH 100MP camera system revolutionises large-scale digitisation projects, maximising productivity and minimising bottlenecks.
- Curated Workflow: Seamlessly integrate Capture One CH software, empowering curators and archivists with specialised tools for swift, precise, and customised digitisation.
- Future-Proof Your Legacy: Ensure your collection’s accessibility and vibrancy for generations with our flexible Phase One Intelligent Image Quality (IIQ) files.
- Adaptable and Resilient: Surpass traditional scanning limitations with our Phase One RAW files, designed to withstand the test of time.
Specifications:
| Feature | Phase One iXH 100MP |
|---|---|
| Resolution (pixels) | 101 Megapixel 11656 x 8742 |
| Pixel Size (micron) | 3.76 |
| Effective Sensor Size (mm) | 43.9 x 32.9 |
| Color depth (per channel) | 16 bit / 14 bit |
| ISO range | 50-6400 |
| Dynamic Range (f-stop) | 15 |
| Capture Rate (FPS) | 2.0 |
| Lens Mount | Phase One iXH |
| Shutter Type | Leaf shutter, Integrated in Lens Electronic Shutter |
| Shutter Speed | Lens Leaf Shutter: 1/250s – 30 sec iXH 100 Electronic Shutter: 1/4,000 – 1 Hour |
| Focus positions | Close range to infinity, 23mm max. extension |
| Focus Control | Motorized & encoded, controlled from software |
| Mechanical mounts | 4x 1/4″ Threaded Holes for VHQ L-Bracket |

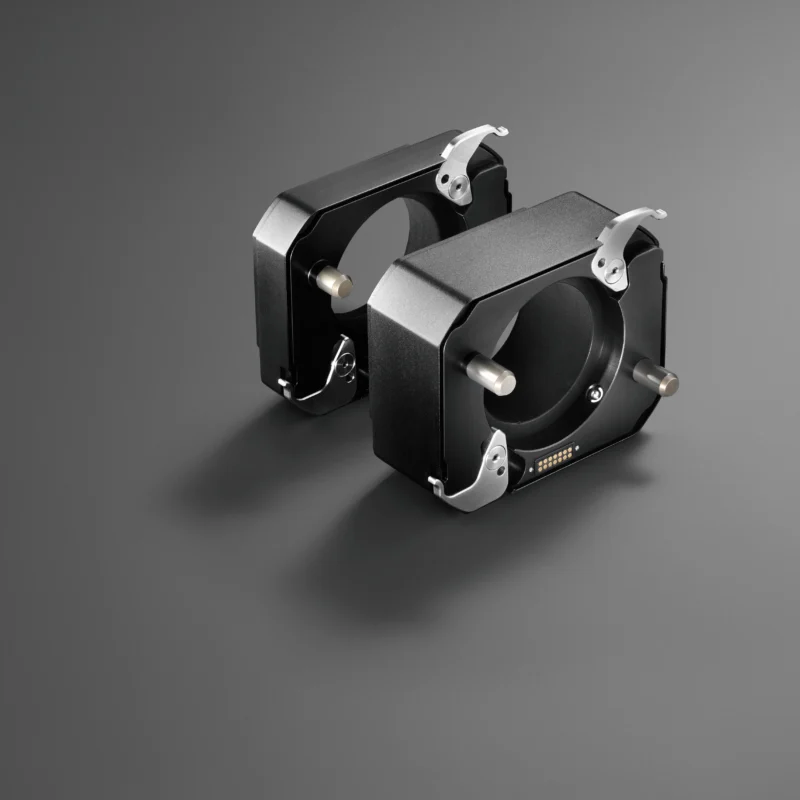

| Mount adapters | L-shape bracket |

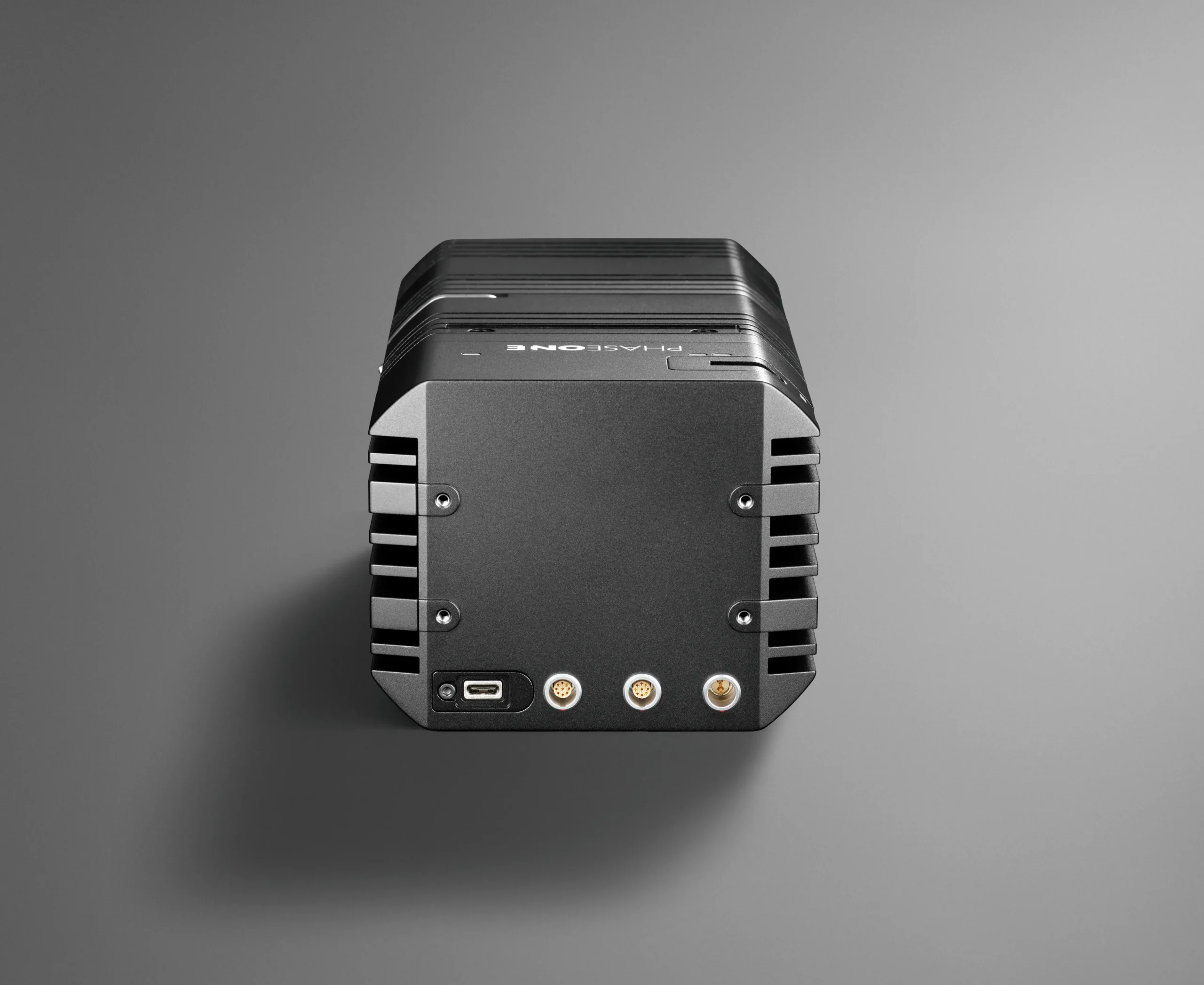

| Interface | USB3 / SFP+ Module (1G/10G) |
| Triggering options | Hand release, host capture from software |
| Flash Output | Via Secured LEMO connector |
| Live View / HDMI | 1920 x 1080 |
| Data Storage | Tethered to Capture One CH |
| Dimensions (mm) with 72mm MkII Lens | 227 x 130 x 130 (inc L-Bracket) |
| Weight (g) with 72mm MkII Lens | 3,450 (inc L-Bracket) |
| Operational temp range (c) | -10 to 40 |
| Humidity (%) | 15-80 (office environment) |

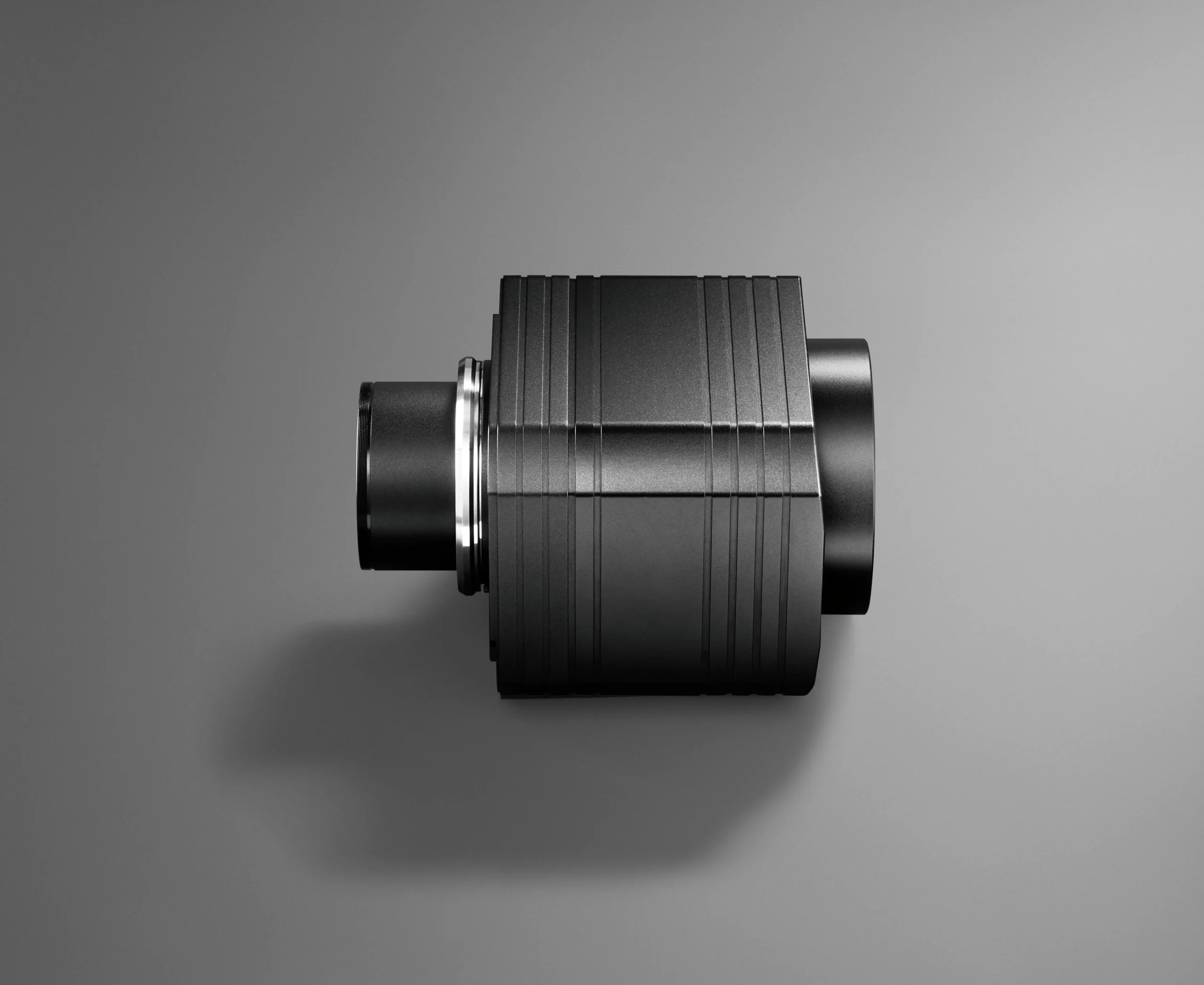

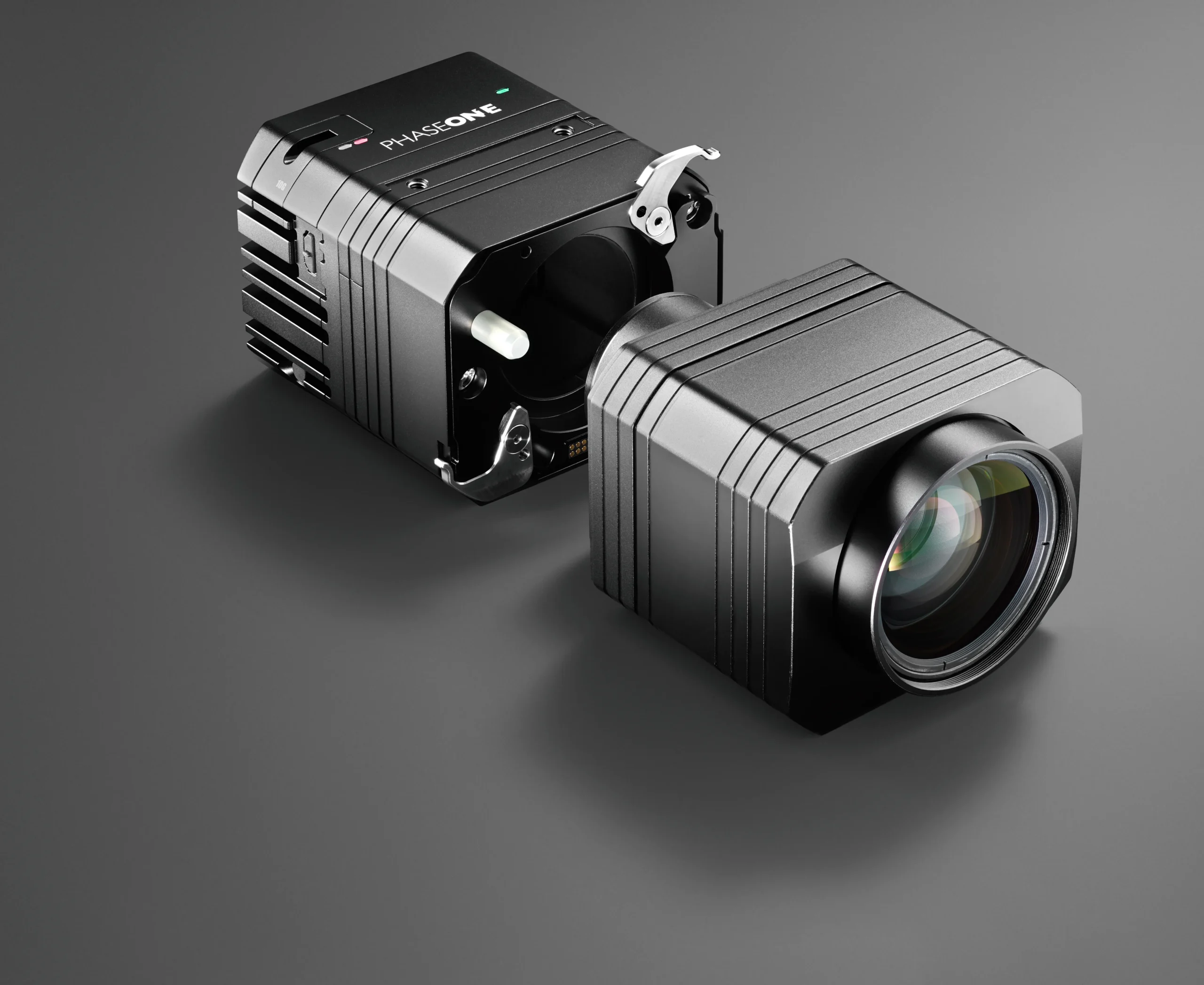

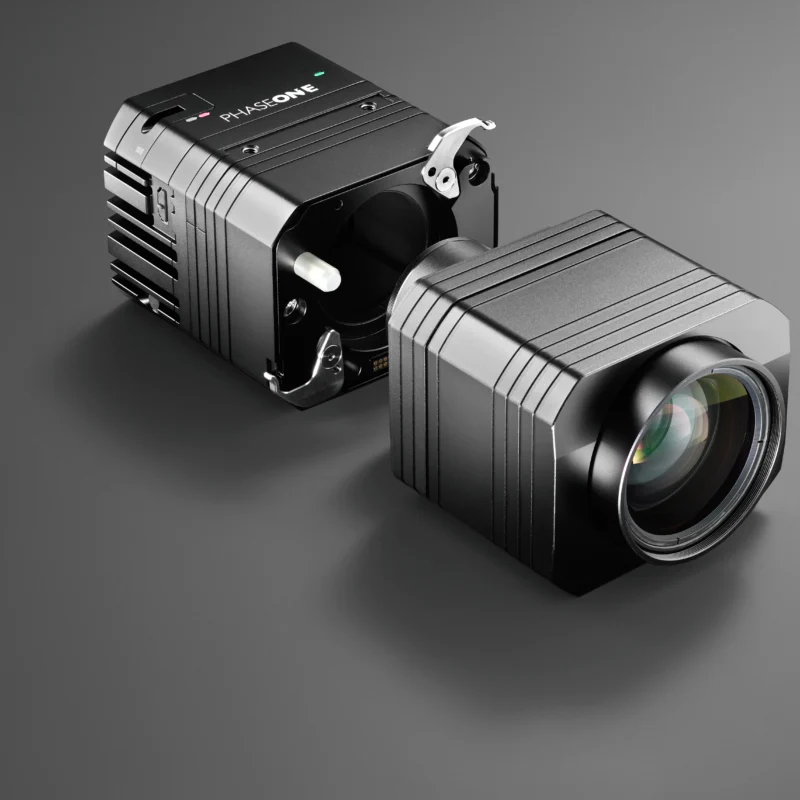

| Lens | Phase One RS 72mm MkII | Schneider Kreuznach 120mm |
|---|---|---|
| Min. focusing distance (cm) | 44 | 67 |
| Lens thread diameter (mm) | 77 | 46 |
| Dimensions (mm) | 150x90x115 | 150x90x115 |
| Weight (g) | 1470 | 1050 |
| Power system, incl. 5m cable | 24V |
|---|---|
| Software | Capture One CH |
| Min. system requirements | PC/ Windows |
