Cambo Actus-MV View Camera

From: £3,300.00 (£3,960.00 inc. VAT)

Cambo Actus-MV View Camera: Maximum Versatility. The Actus-MV is a fully adjustable view camera that is still compact enough to be your companion for use in the field. It works equally well with digital backs, mirrorless camera bodies and DSLRs.

Cambo Actus-MV View Camera
SKU: ACTUS-MV Category:

Description

Cambo Actus-MV View Camera


The Actus-MV is a fully adjustable view camera that is still compact enough to be your companion for use in the field. It works equally well with digital backs, mirrorless camera bodies and DSLRs. No matter how your photography develops, the Actus-MV is ready for it and will evolve alongside camera and digital back technology.

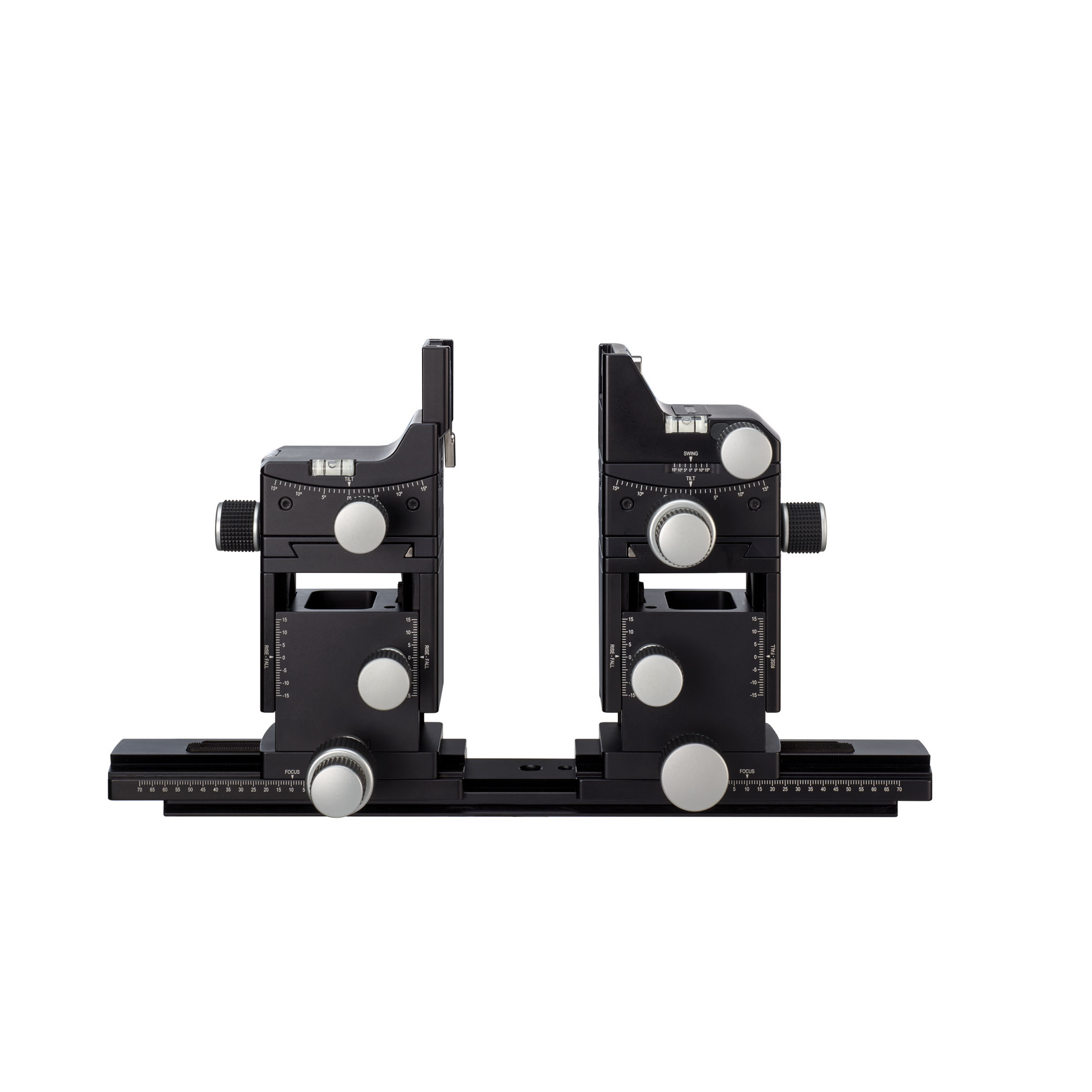

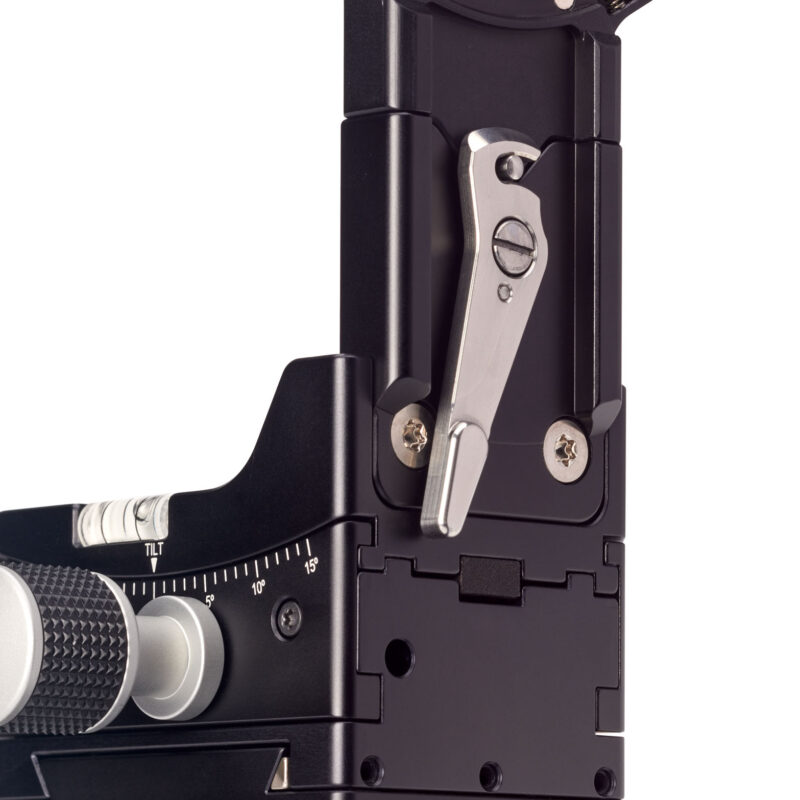

The Actus-MV base is a solid foundation in which all camera movements are integrated. To facilitate packing, front and rear standard can be separated from the optical bench without requiring tools. The rear standard can be completed with a choice of adapters for virtually every digital back available. To enable the use of a camera body as your digital back, Cambo offer bayonets for most DSLR and Mirrorless cameras on the market.

At the front standard the Actus-MV accepts the ever expanding range of Cambo Actar lenses. Cambo Actus-MV shown with optional lenses and optional camera body. The basic configuration of a Cambo Actus-G consists of a monorail, front assembly without lens plate, a rear frame which can accept a camera bayonet holder and a detachable standard bellows which is part of the Actus configuration.


Specifications

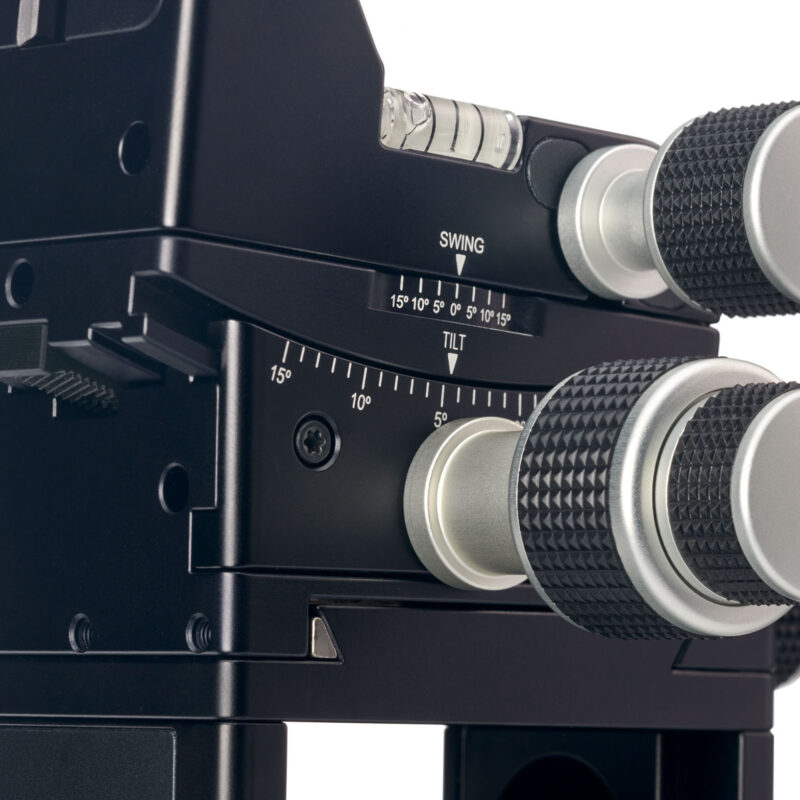

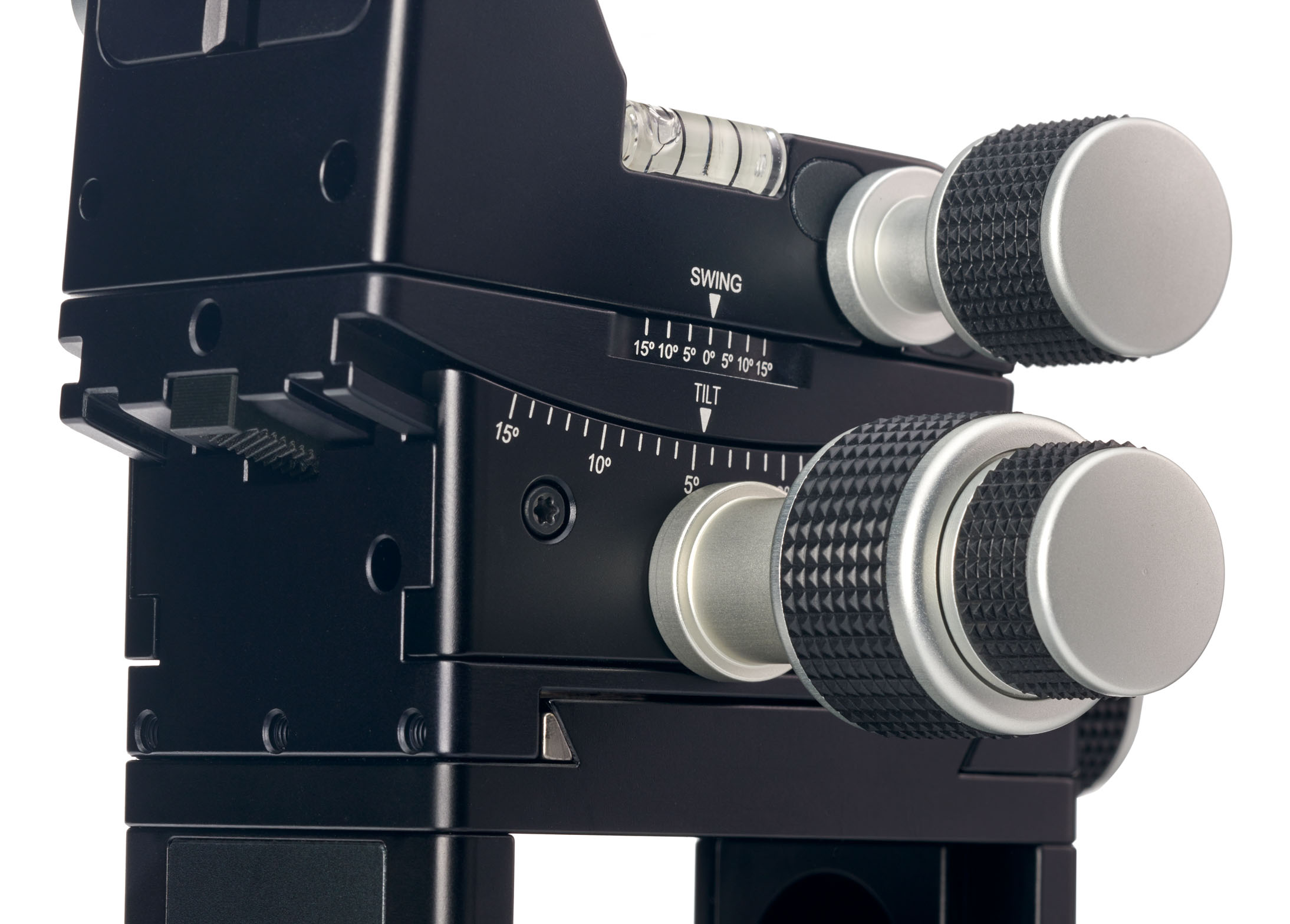

  • Front standard tilt: 15º/15º (dual ratio gear)
  • Rear standard tilt: 15º/15º
  • Front standard swing: 30º/30º
  • Front and Rear Standard Horizontal Shift: 20mm/20mm
  • Rear Standard Rise/Fall: 15mm/15mm (dual ratio gear)
  • Front Standard  Rise/Fall: 15mm/15mm
  • Friction knobs on camera movements
  • Weight: 2.8 kg (frames included)
  • Max extension with standard rail and bellows: 280mm (2x 70mm geared / 1 40mm telescopic)

Actus-MV IQ

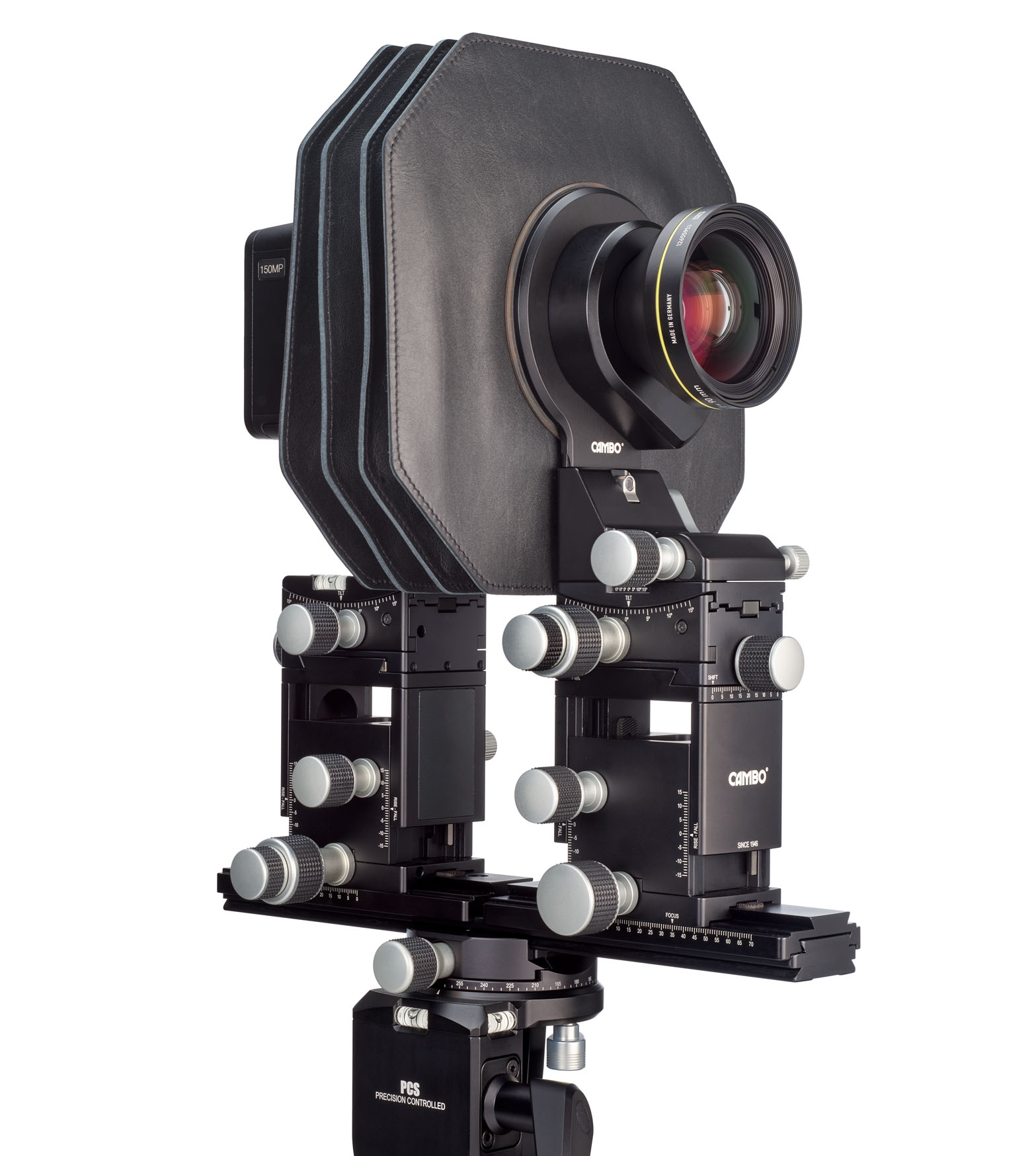

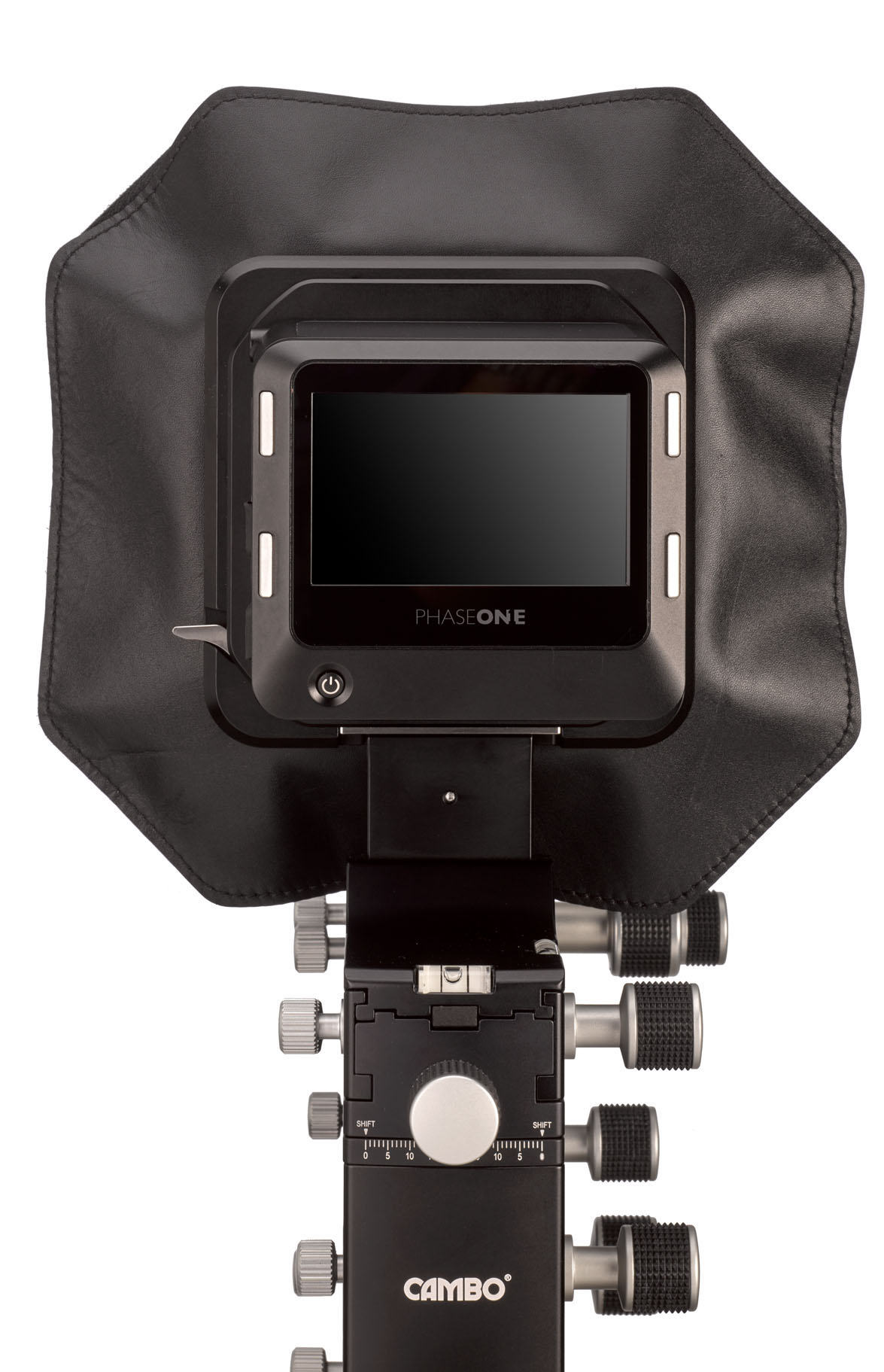

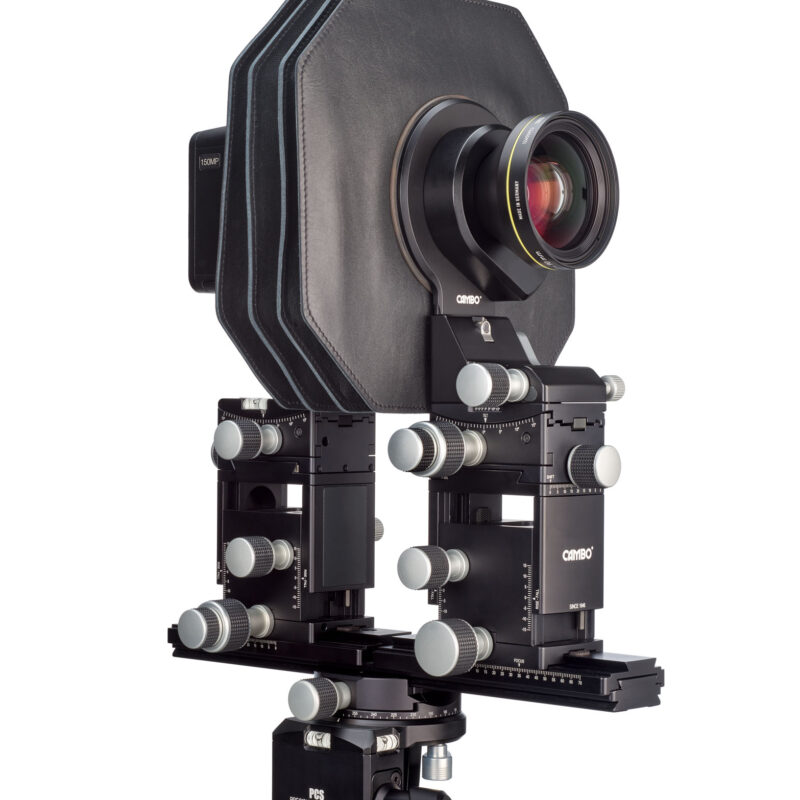

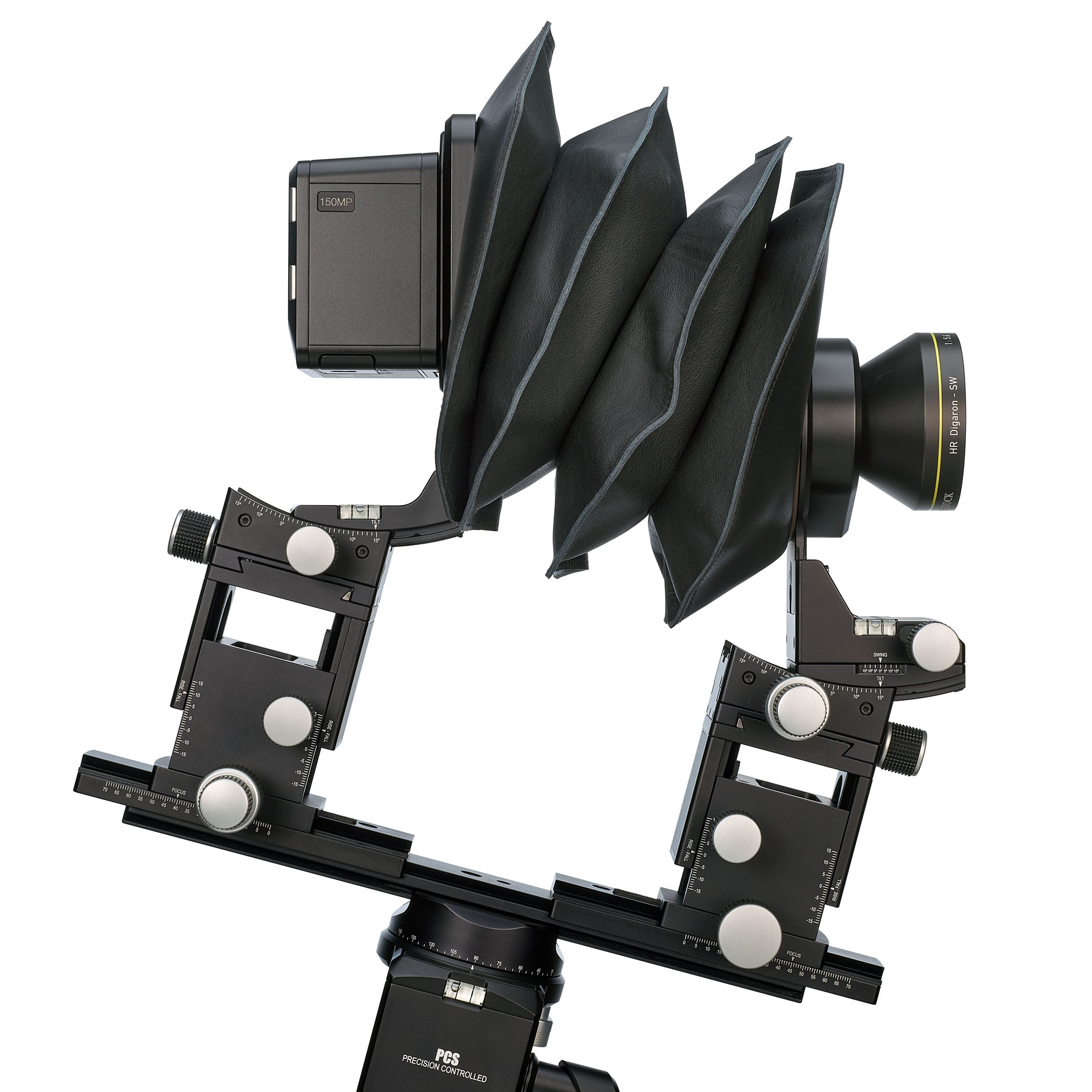

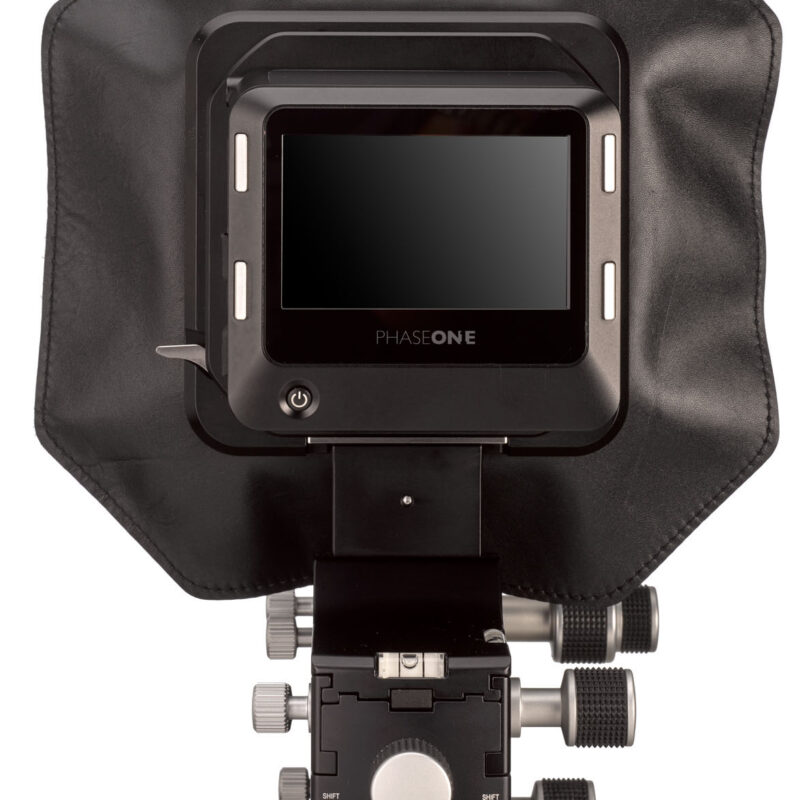

The Actus-MV base completed with ACDB-990 digital back adapter and ACDB-254 bellows. The set-up for use with digital backs featuring the Phase One/Mamiya interface. Adapter ACDB-990 has an integrated rotation from landscape to portrait orientation.

Actus-MV HV

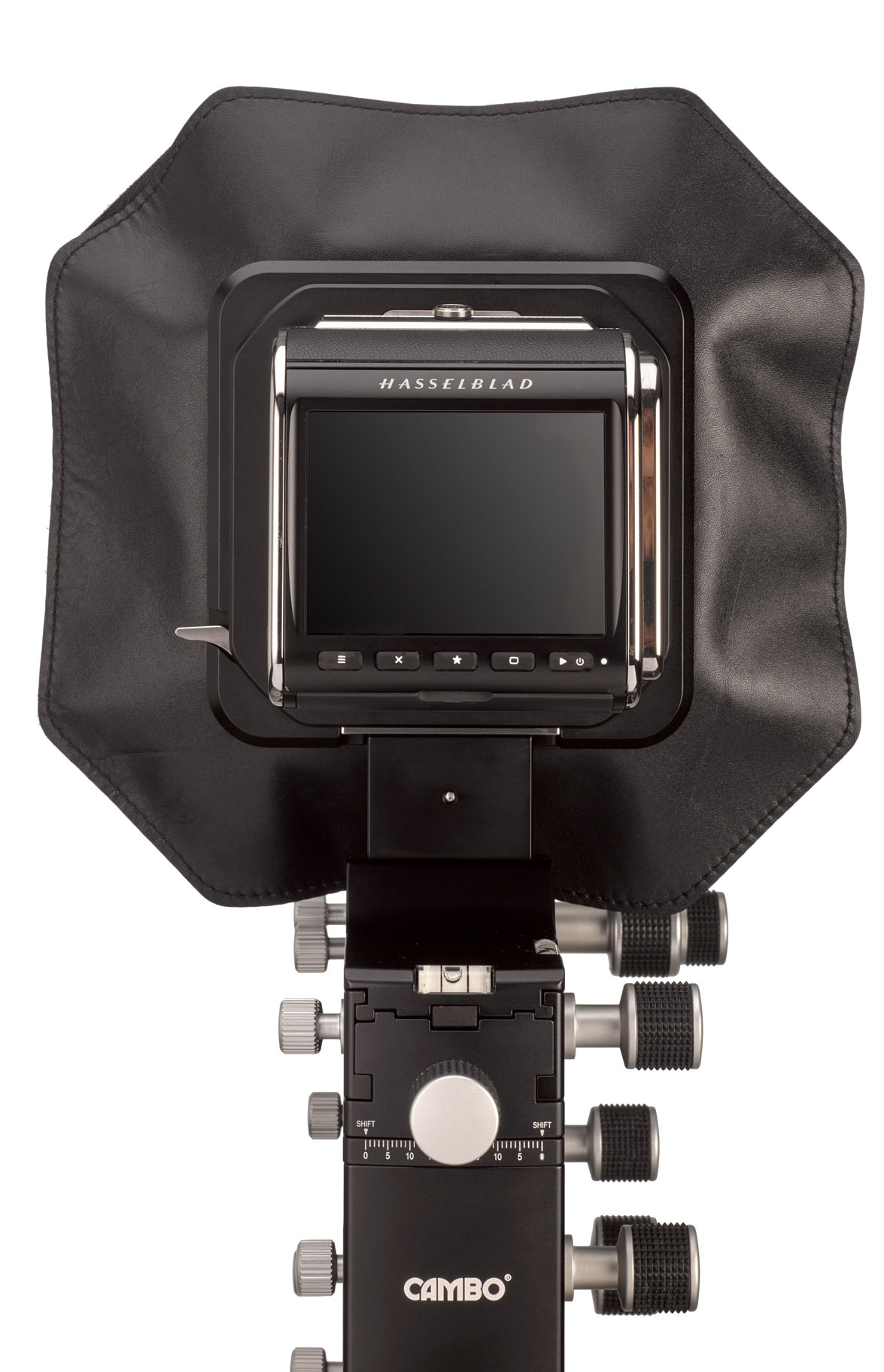

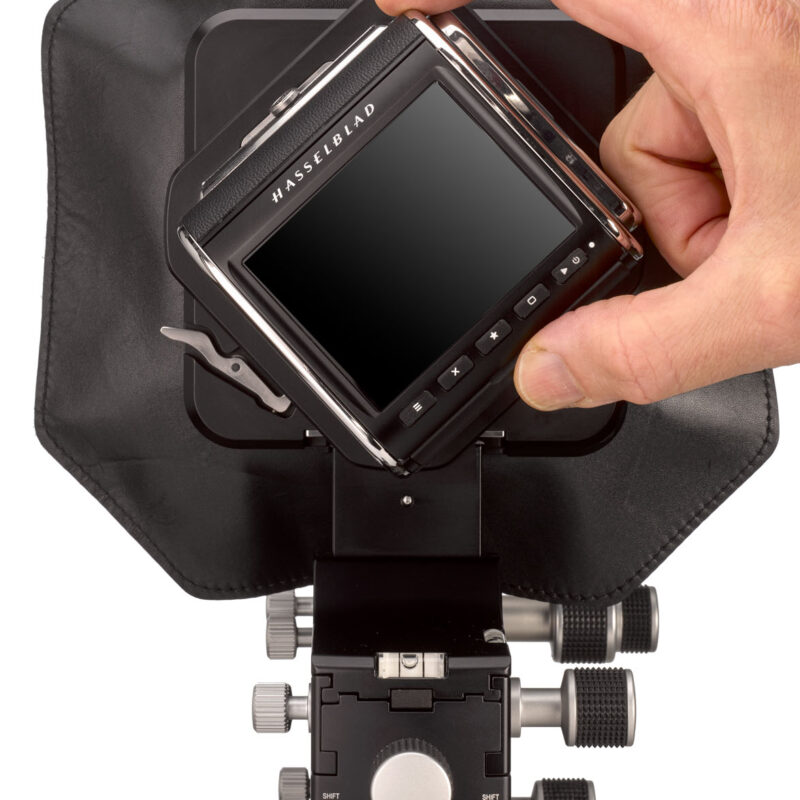

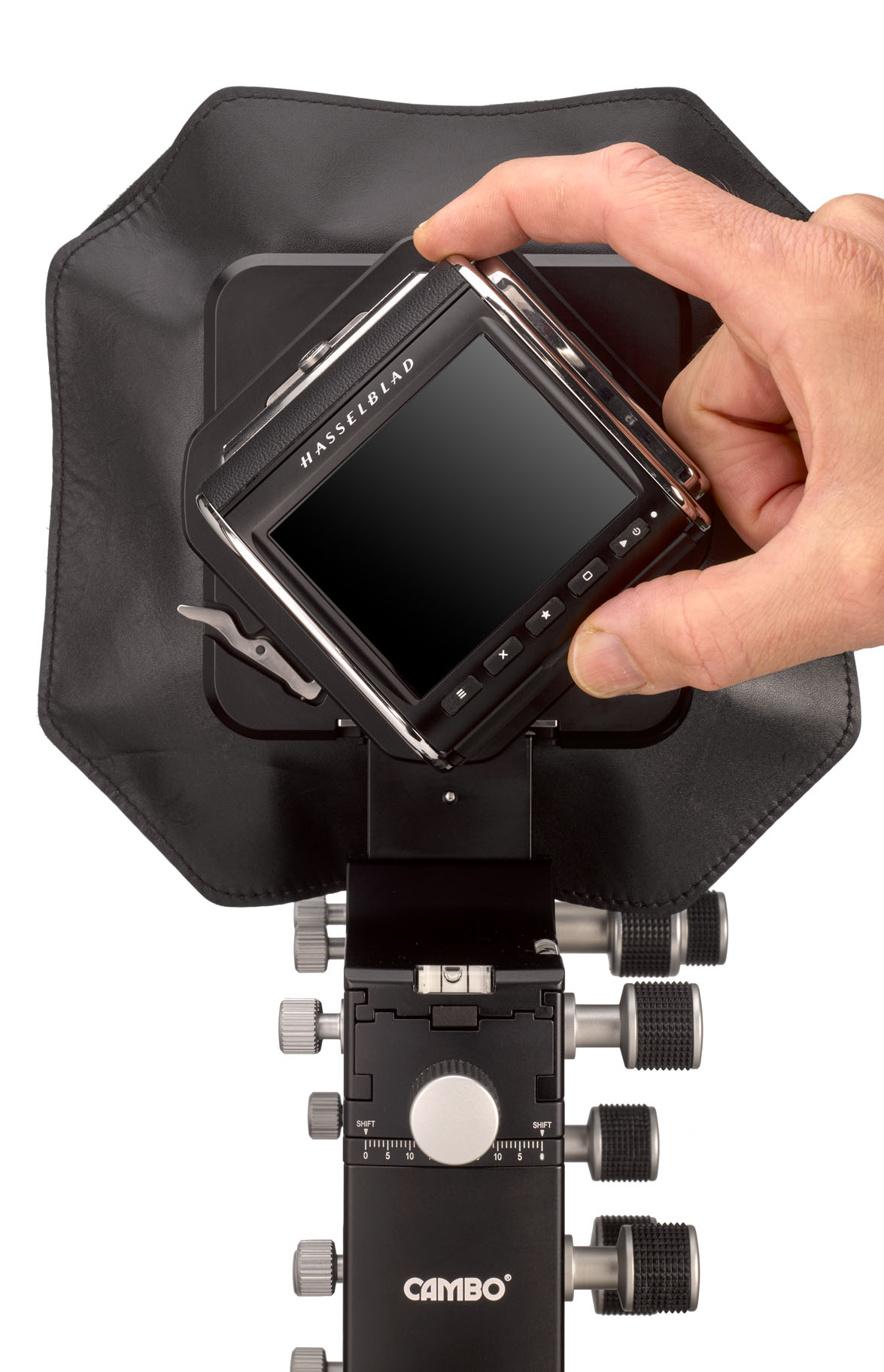

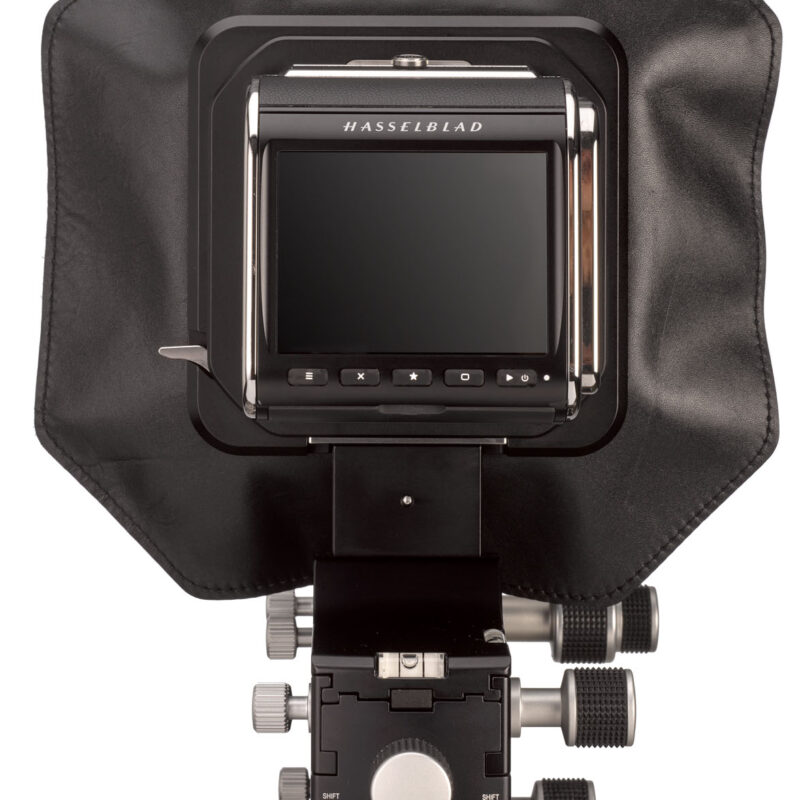

The Actus-MV base completed with ACDB-991 digital back adapter and ACDB-254 bellows. The set-up for use with digital backs featuring the Hasselblad-V interface. Adapter ACDB-991 has an integrated rotation from landscape to portrait orientation.

Actus-MV DB

The Actus-MV base completed with the universal ACDB-989 interchangeable adapter holder and ACDB-254 bellows. The set-up for use with digital backs. ACDB-989 accepts the well-known Cambo SLW adapters which are available for virtually every digital back. Including legacy models.

Actus-MV DC

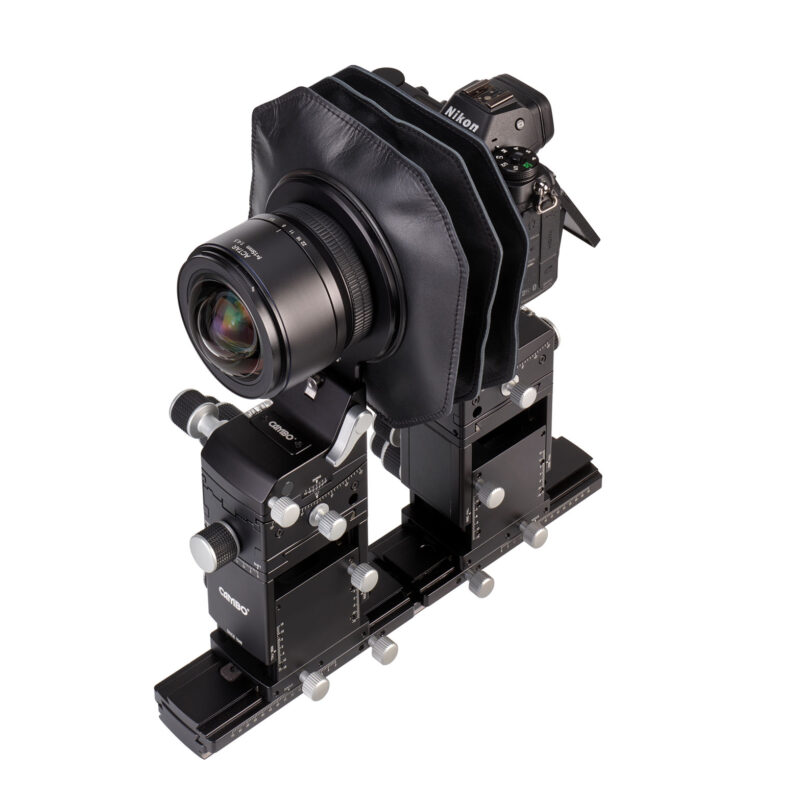

The Actus-MV base completed with the universal bayonet adapter ACMV-86e and bellows AC-214. ACMV-86e accepts a vast range of bayonets for mirrorless and DSLR cameras and features integrated rotation from landscape to portrait.

Actus-MV F50

The Actus-MV base completed with adapter ACMV-862 and bellows AC-214. ACMV-862 enables the use of Fujifilm GFX-50 and GFX-100s camera bodies  and features integrated rotation from landscape to portrait.

Actus-MV F100

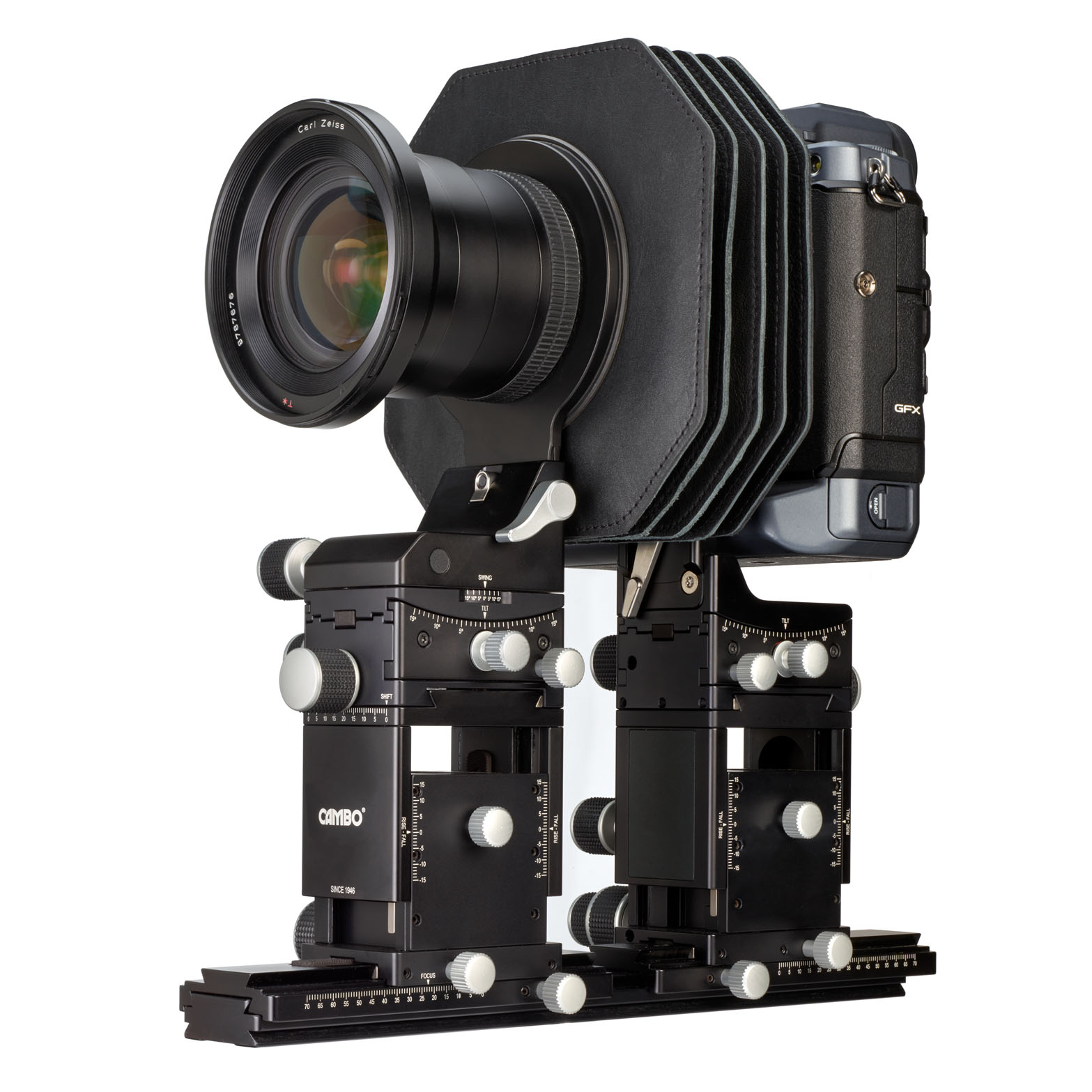

The Actus-MV base completed with adapter ACMV-863 and bellows AC-214. ACMV-863 enables the use of the Fujifilm GFX100 body and features integrated rotation from landscape to portrait.

Additional information

Weight 15000 g
Brand

Camera Series

Cambo Actus

Variant

Actus-MV only (rail, front and rear standard, no bellows, no mounts), Actus-MV + ACMV-86E DSLR/Mirrorless Bayonet + AC-214 Extension Bellows 200mm, Actus-MV + ACMV-862 Fuji GFX Bayonet + AC-214 Extension Bellows 200mm, Actus-MV + ACMV-863 Fuji GFX100 Bayonet + AC-214 Extension Bellows 200mm, Actus-MV + ACDB-990 Phase One IQ Bayonet + AC-214 Extension Bellows 300mm, Actus-MV + ACDB-991 Hasselblad CFV Bayonet + AC-214 Extension Bellows 300mm, Actus-MV + ACDB-989 SLW Bayonet + AC-214 Extension Bellows 300mm
