Description
Cambo Actus-G View Camera
The Cambo ACTUS-G is derived from the ACTUS-Mini camera system. It combines traditional view camera techniques with the latest capture technology. The Cambo Actus-G is a true cross-platform camera base within the Actus family.

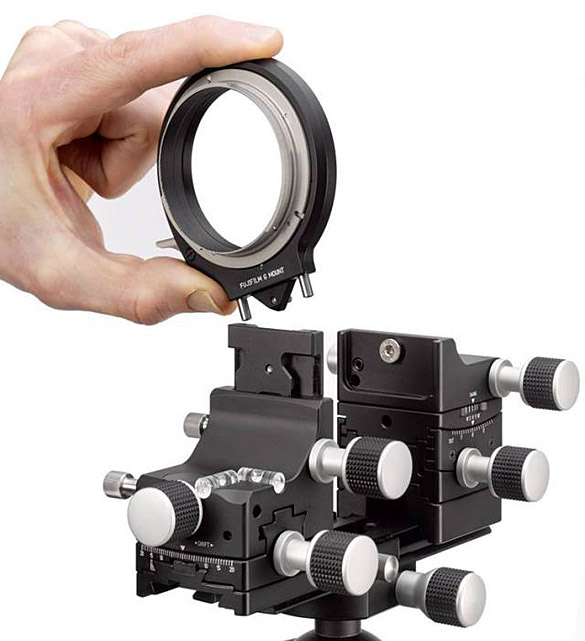

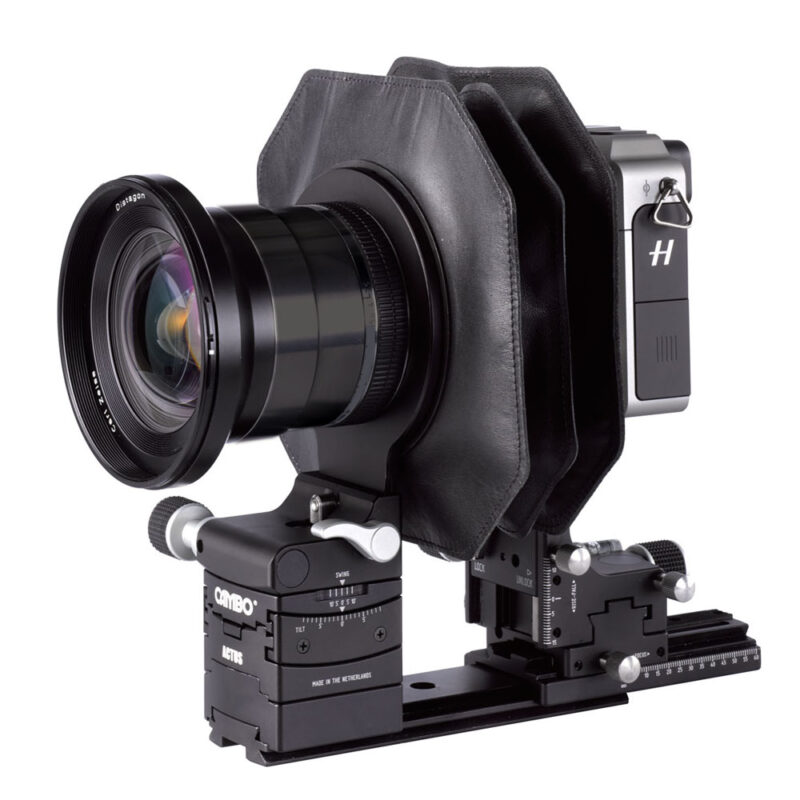

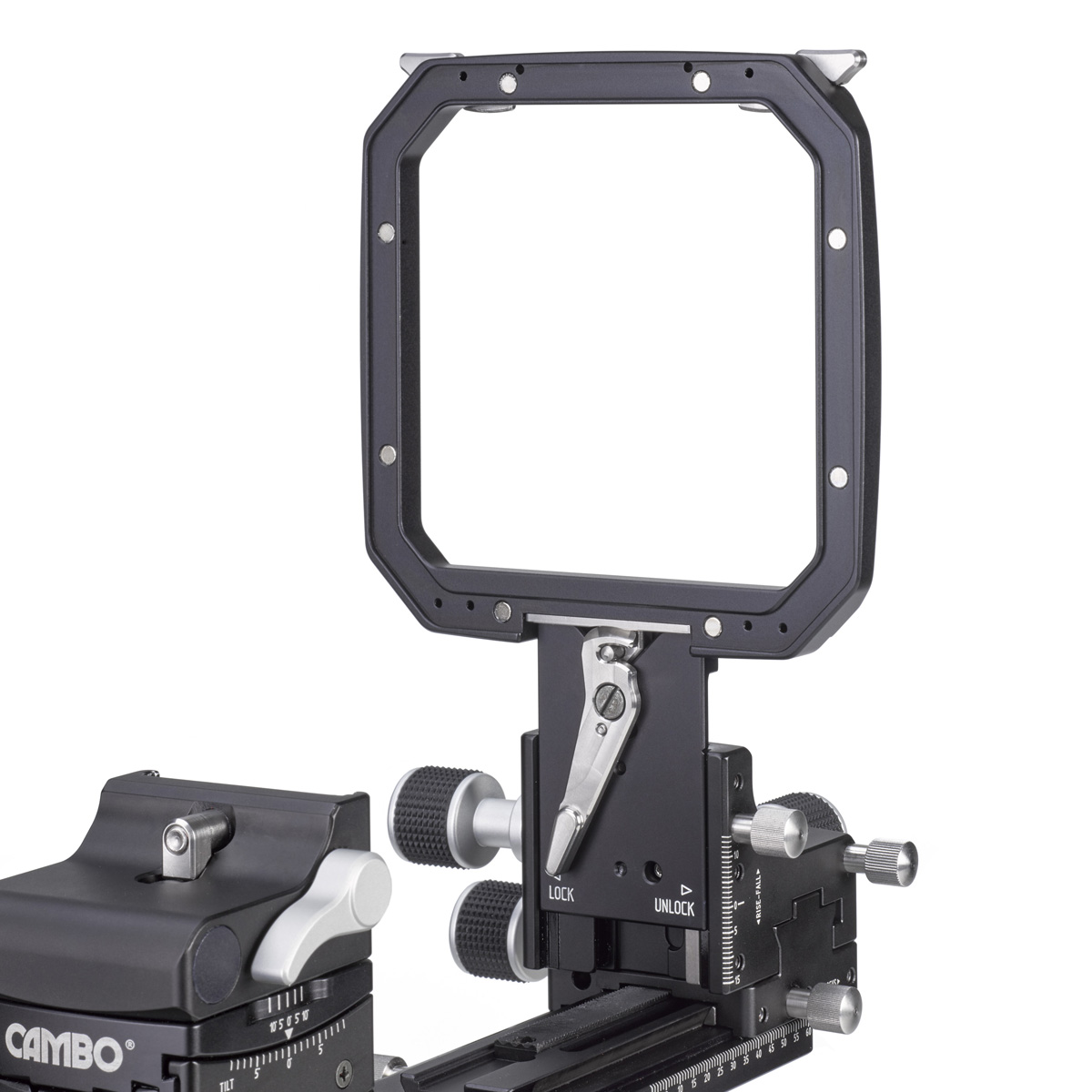

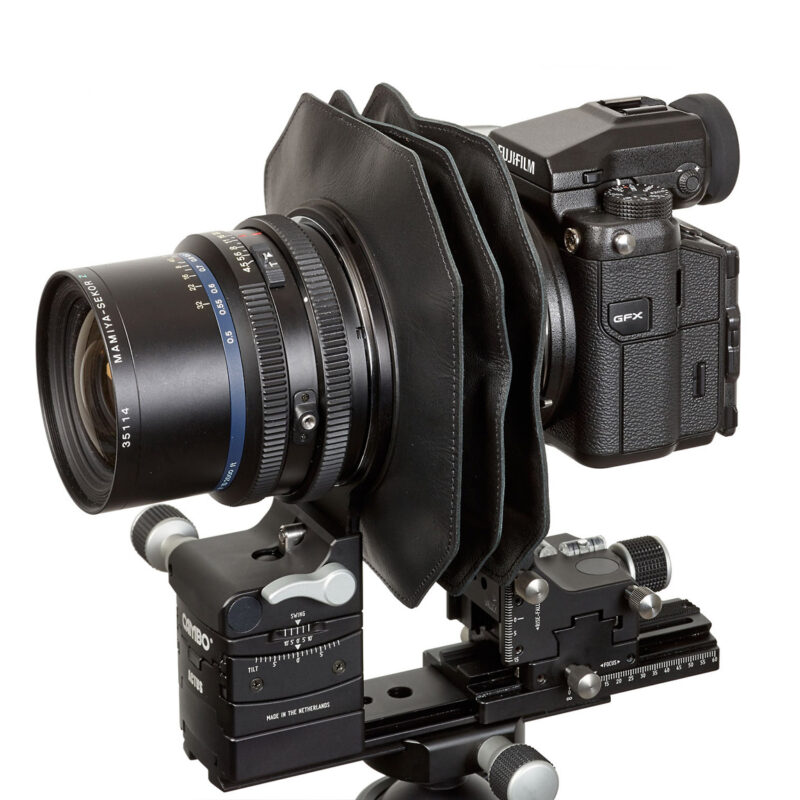

This ACTUS-G version features a mount for an interchangeable bayonet. It can be used with many different camera options, including Fujifilm’s GFX-50s, Hasselblad’s X1D, all bayonets from the Actus Mini by using the AC-78E holder, and even with an interchangeable frame for digital backs.
Using view camera movement the photographer will be able to be more versatile, be more creative and will be getting more professional results much faster than before. Mirrorless system camera bodies can be used as digital back, while the Cambo ACTUS will function as tilt-shift and swing adapter with view camera movements for each lens that is being used with this combination.
Size matters, the Cambo ACTUS has been designed to give maximum functionality with minimal dimensions to support portability at ease. The Cambo ACTUS-Mini series is small and lightweight and fits easily in a small case.
Cambo ACTUS-G Specifications:
|
Size L / W / H:
|
152 x 115 x 171 mm
|
|
Weight:
|
1150 grams
|
|
Front Swing:
|
360 degrees
|
|
Front Tilt:
|
19 degrees (+10/-9)
|
|
Rear Shift Vertical:
|
27mm (12/15)
|
|
Rear Shift Horizontal:
|
40mm (20/20)
|
|
Focus Travel:
|
up to 134mm (-GFX-sensor)
|
Lens plates options:
- Cambo ACTAR lens series
- Copal 0 and 1 (#3 on request)
- Hasselblad C Bayonet
- M39 Leica thread
- Mamiya 645 ProTL bayonet
- Mamiya RZ/RB bayonet
- Pentax 645 bayonet (for mirrorless bodies only)
Available Colours:
- Black anodised
