Cambo Actus-B Mini View Camera

From: £1,550.00 (£1,860.00 inc. VAT)

The Cambo ACTUS-B Mini is a new technology camera system designed for mirrorless cameras, such as the Sony Alpha 7 series & Fuji-X and available for Canon & Nikon DSLR’s.
SKU: 382907-1 Category:

Description

Cambo Actus-B Mini View Camera


The Cambo ACTUS-B Mini is a new technology camera system designed for mirrorless cameras, such as the Sony Alpha 7 series & Fuji-X and available for Canon & Nikon DSLR’s.

It combines traditional view camera techniques with the latest capture technology.

Using view camera movement the photographer will be able to be more versatile, be more creative and will be getting more professional results much faster than before.

Mirrorless system camera bodies can be used as digital back, while the Cambo ACTUS will function as tilt-shift and swing adapter with view camera movements for each lens that is being used with this combination.

Size matters, the Cambo ACTUS has been designed to give maximum functionality with minimal dimensions to support portability at ease.

The Cambo ACTUS-B Mini is small and lightweight and fits easily in a small case.

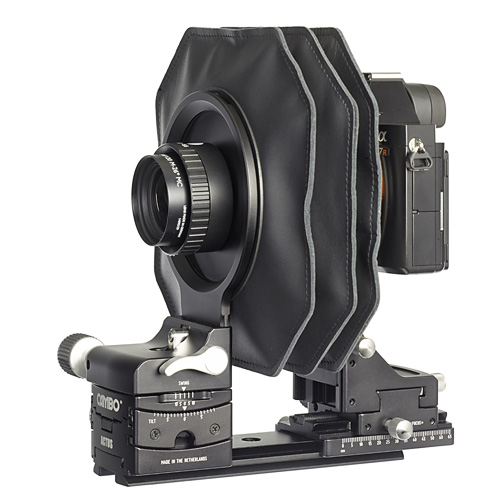

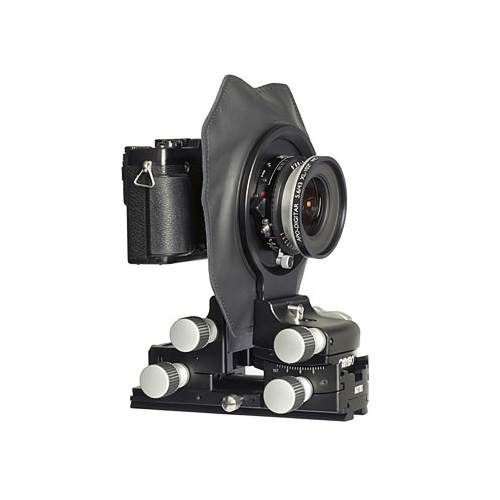

Cambo ACTUS shown with optional lenses and optional camera body. A basic configuration of a Cambo ACTUS-B Mini consists of a monorail, front assembly without lensplate, a rear frame with an optional choice of camera bayonet and a detachable standard bellows which is part of the ACTUS configuration.


Cambo ACTUS-B Mini Specifications:

Size L / W / H:
15 x 10 x 17 cm
Weight:
1000 grams
Front Swing:
360 degrees
Front Tilt:
19 degrees (+10/-9)
Rear Shift Vertical:
27mm (12/15)
Rear Shift Horizontal:
40mm (20/20)
Focus Travel:
up to 125mm (Sony E-mount)
up to 145mm (Nikon F-mount)
up to 141mm (Canon EOS-mount)

Lens plates options:

  • Cambo ACTAR lens series
  • Copal 0 and 1 (#3 on request)
  • Hasselblad C Bayonet
  • M39 Leica thread
  • Mamiya 645 ProTL bayonet
  • Mamiya RZ/RB bayonet
  • Pentax 645 bayonet (for mirrorless bodies only)
  • Leica R Bayonet  (for mirrorless bodies only)
  • Nikon-F Bayonet  (for mirrorless bodies only)
  • Canon-EOS bayonet (for mirrorless bodies only)

Available Colours:

  • Black anodised
  • Titanium anodised (option)

Additional information

Weight 2000 g
Brand

Camera Series

Cambo Actus

Variant

Actus with No Mount, Actus with Canon EOS Mount, Actus Nikon F Mount, Actus with Sony E-Mount, Actus with Fuji X Mount
