Description

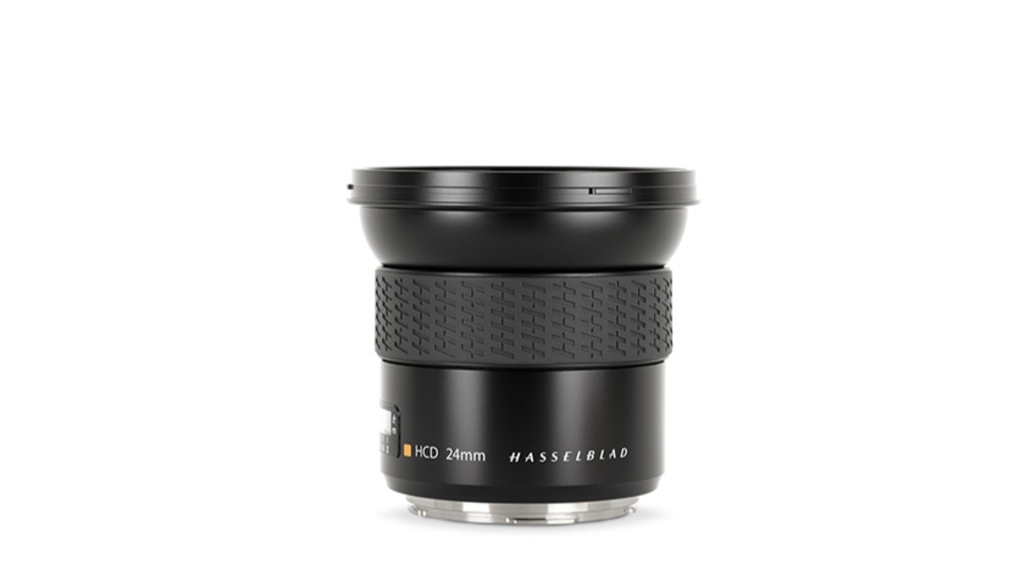

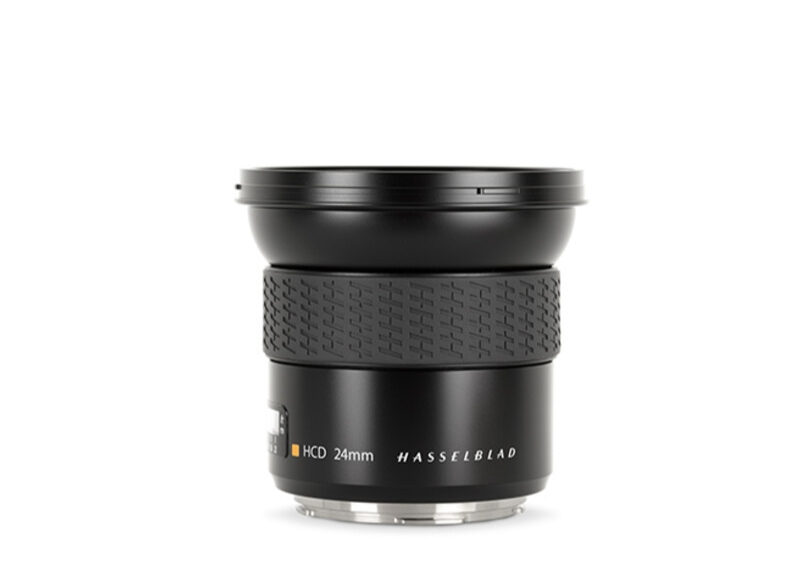

The HCD 24mm lens, boasting an ultra-wide perspective and advanced optics, delivers exceptional sharpness even in the corners. Its compact size makes it ideal for tight shooting conditions, and it pairs seamlessly with the HTS 1.5x Tilt/Shift Adapter to provide a versatile 37mm (equivalent to 27mm on 35mm format) wide-angle tilt-shift lens.
General Lens Specifications
- Focal length 24,3 mm
- Equivalent 35mm focal length1* 16,4 mm
- Aperture range 4,8 – 32
- Angle of view diag/hor/vert 53,4 x 40 format 108°/96°/79°
- Angle of view diag/hor/vert 44 x 33 format 97°/84°/68°
- Length/diameter 99 mm/100 mm
- Weight 810 g
- Filter diameter 95 mm
1*Horizontal coverage between 53,4 x 40 and 36 x 24 compared
Close Focus Range Specifications
- Minimum distance object to film 0.38 m
- Maximum image scale 1:9.7
- Corresponding area of coverage 52 × 39 cm
- Corresponding exposure reduction 0 f-stop
Compatibility
- The HCD 4,8/24 lens is designed for digital use and does not fully cover
the film format (41.5×56 mm). - The HCD 4,8/24 lens is not compatible with the Converter 1.7x.
