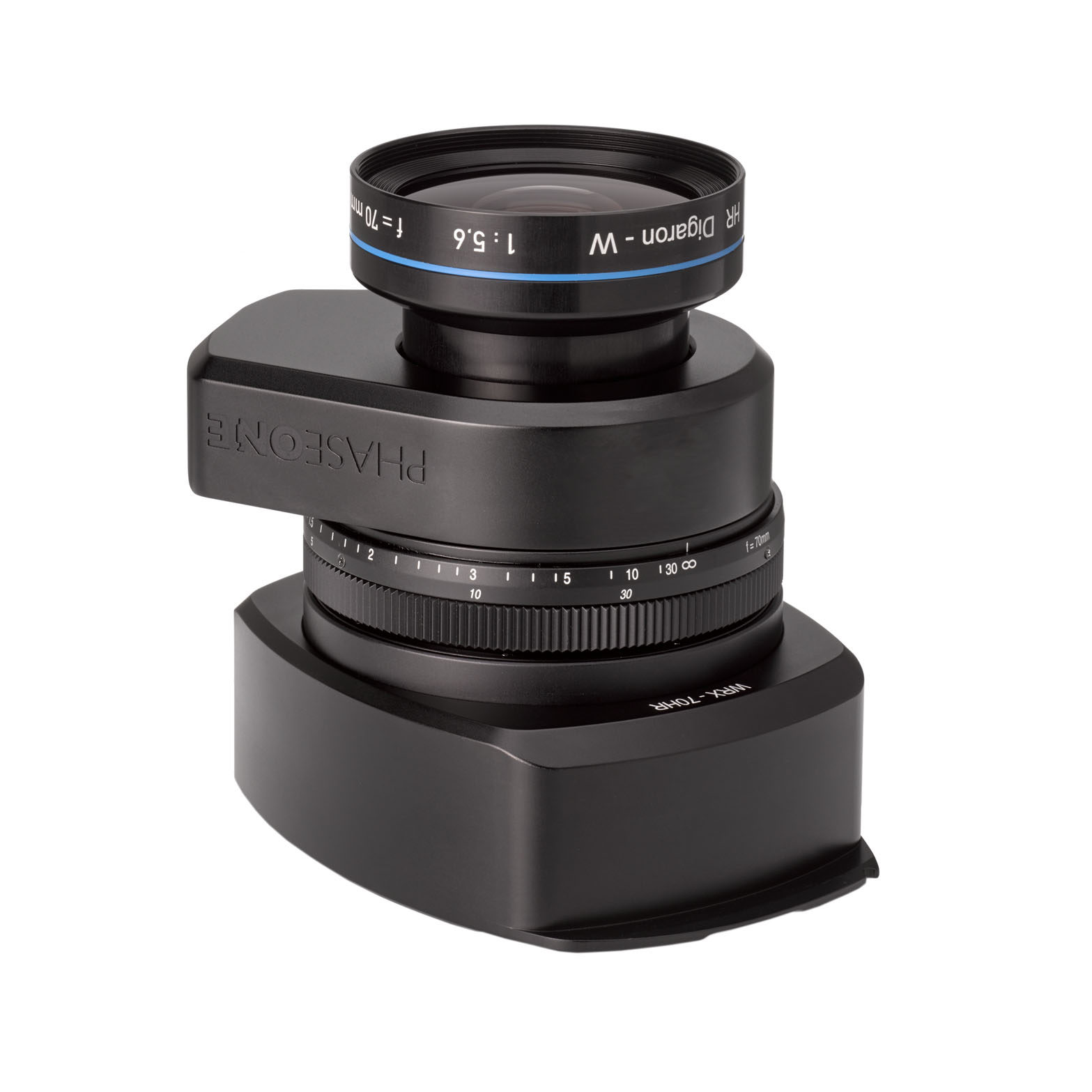

Cambo WRS 70mm HR Digaron-W Lenspanel

From: £4,750.00 (£5,700.00 inc. VAT)

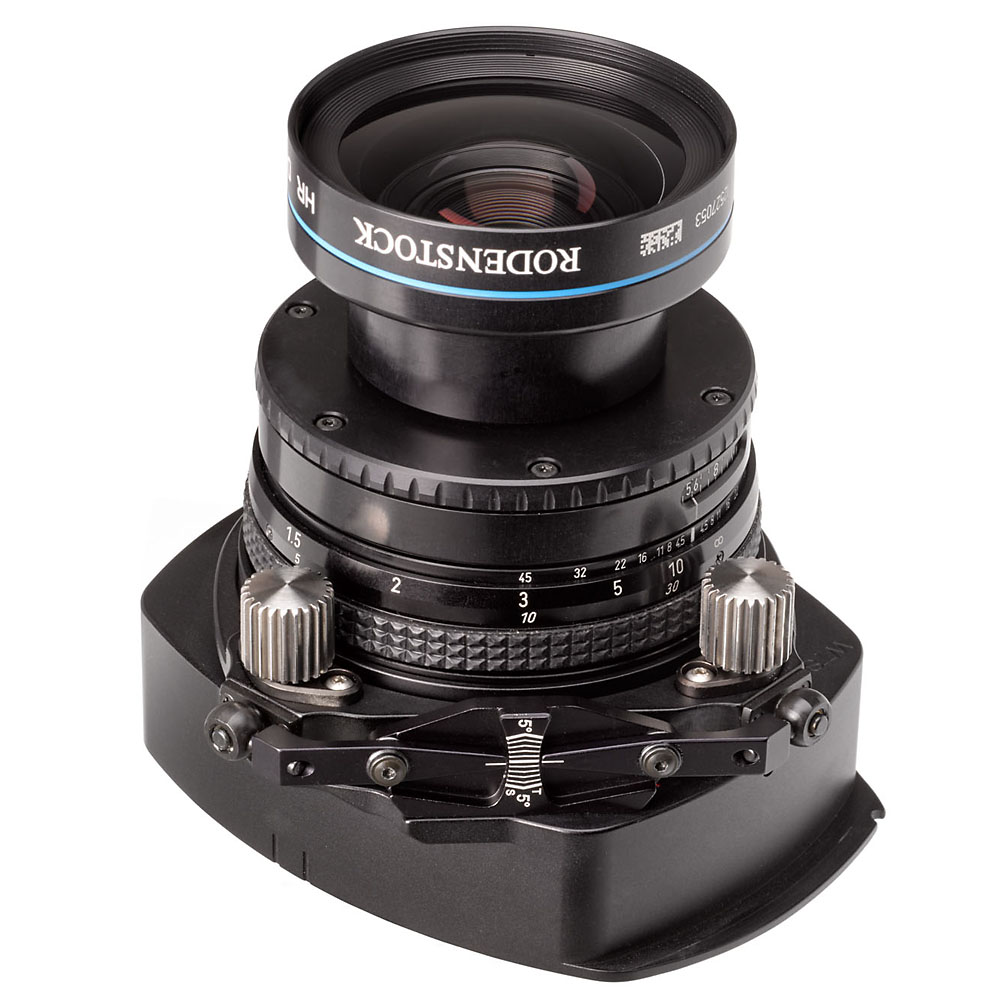

The Cambo WRS lenses are available on standard panels, or with Tilt/Swing mechanism. There is a choice of Aperture Only mount (for use with a sensor-based Electronic Shutter) or mounted with Phase One X-Shutter.

SKU: N/A Category:

Description

Cambo WRS 70mm HR Digaron-W Lenspanel


The Cambo WRS lenses are available on standard panels, or with Tilt/Swing mechanism. There is a choice of Aperture Only mount (for use with a sensor-based Electronic Shutter) or mounted with Phase One X-Shutter.

70mm Specifications:

  • Shortest focal distance to object: 0.9m
  • Image circle of lens at f/11: 100mm

Optical Movements:

  • CCD size 37x37mm: 28/28mm
  • CCD size 33x44mm: 28/25mm
  • CCD size 36x48mm: 25/22mm
  • CCD size 37x49mm: 24/22mm
  • CCD size 40x54mm: 20/18mm
  • CCD size 36x56mm: 22/18mm

Please note that some optical movements are larger than achievable due to mechanical limitation.

Camera Movements:

  • WDS: Up / Down / Left / Right: 34 / 26 / 20 / 20mm
  • WRS: Up / Down / Left / Right: 25 / 15 / 20 / 20mm

Additional information

Weight 1500 g
Brand

Camera Series

Cambo WRS

Variant

Standard Panel – Aperture Only, Tilt/Swing Panel – Aperture Only, Standard Panel – Phase One X-Shutter, Tilt/Swing Panel – Phase One X-Shutter
