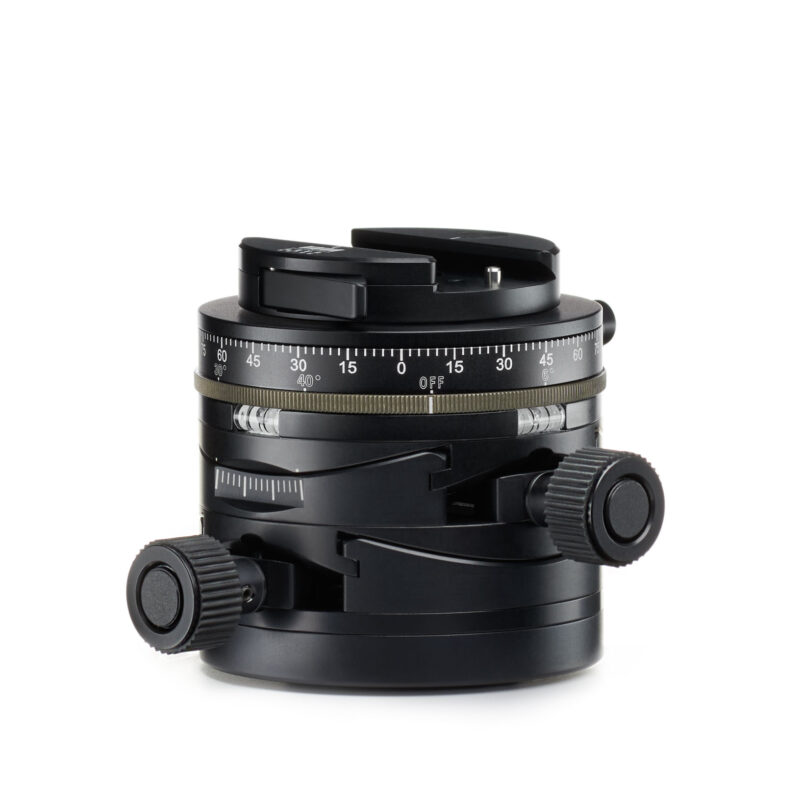

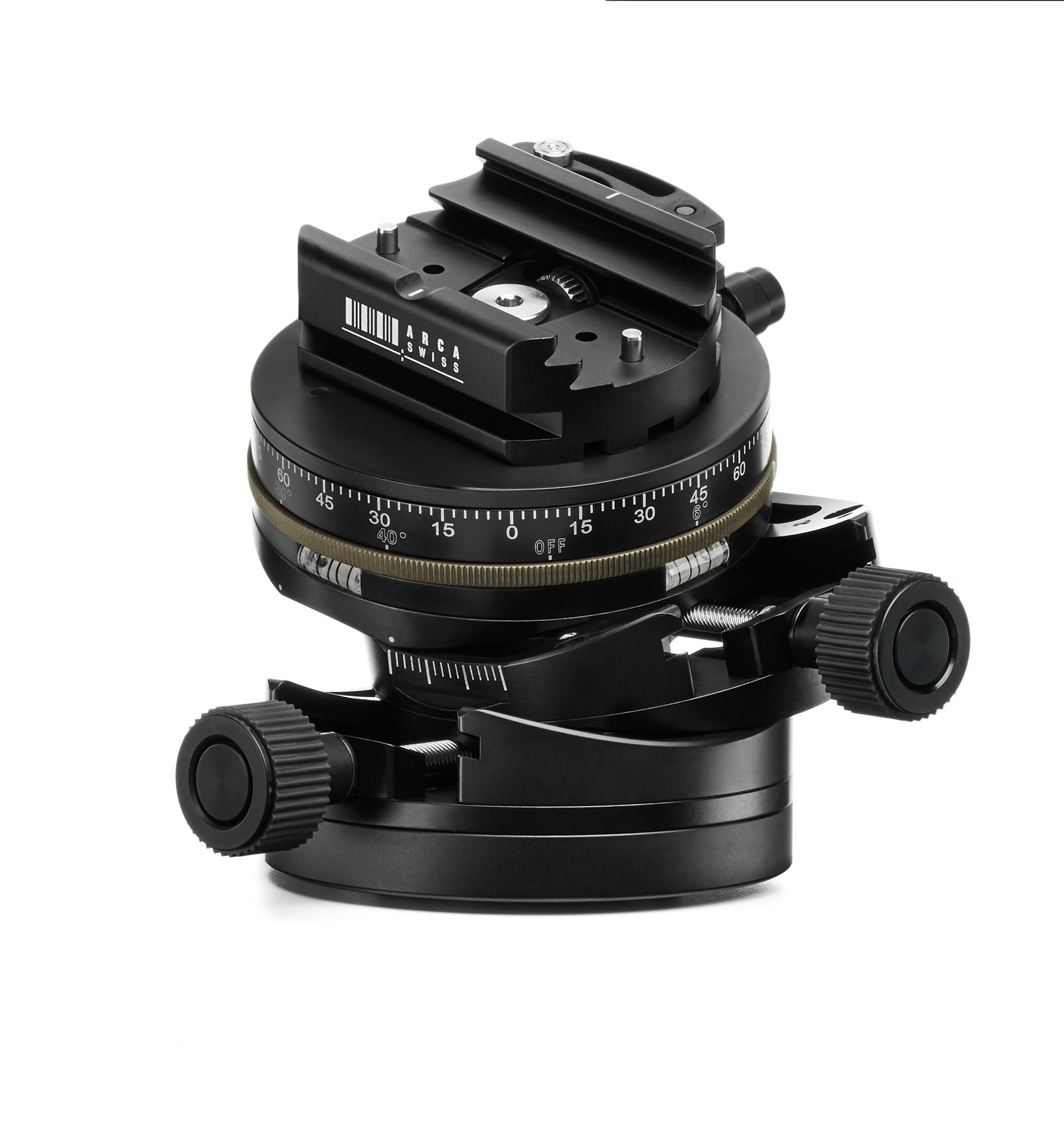

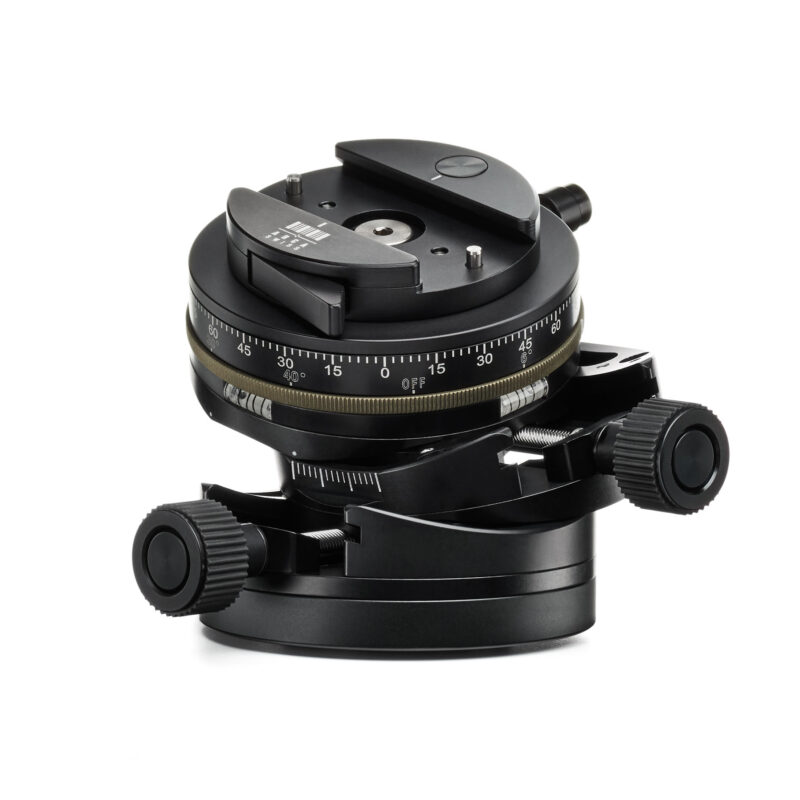

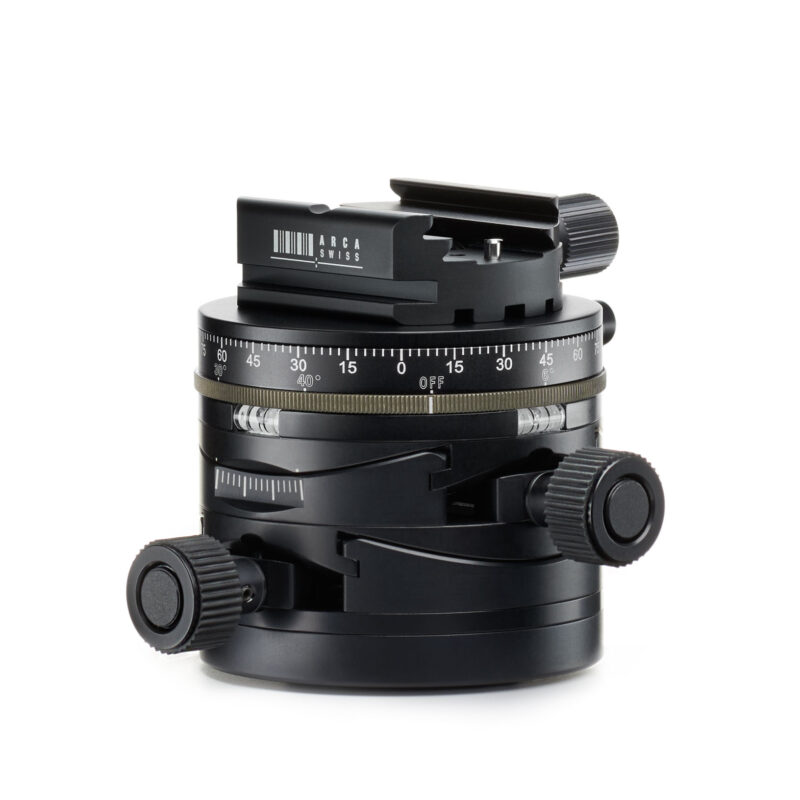

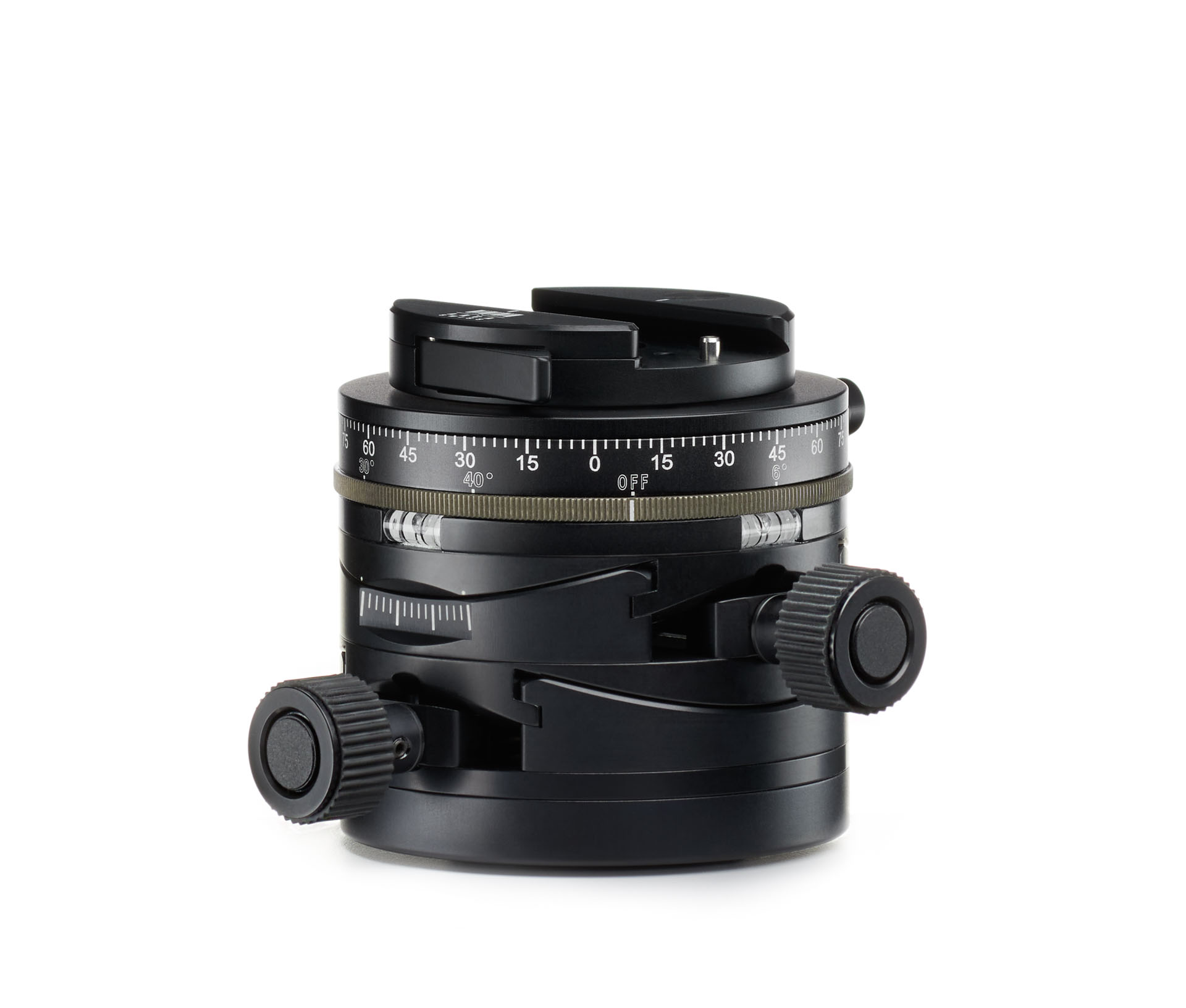

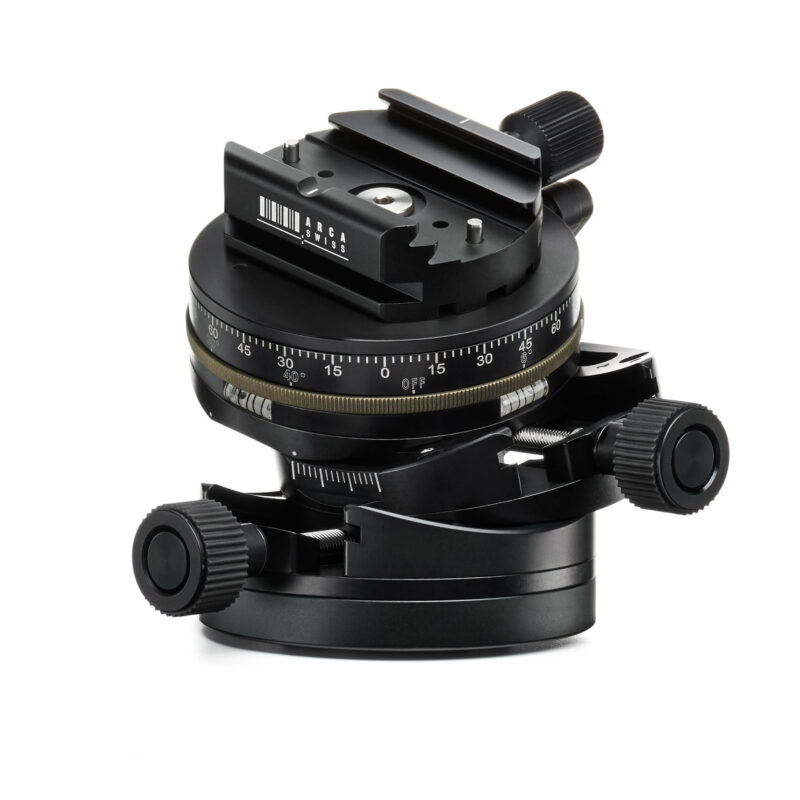

ARCA-SWISS Core 75 Leveler with clicPan®
The ARCA-SWISS Core 75 Leveler with clicPan® employs the same principles that made the C1 Cube such a success. Their movements have a smaller range yet have the advantage of making the Core Levelers more compact and lighter. They are the ideal heads for travelling.

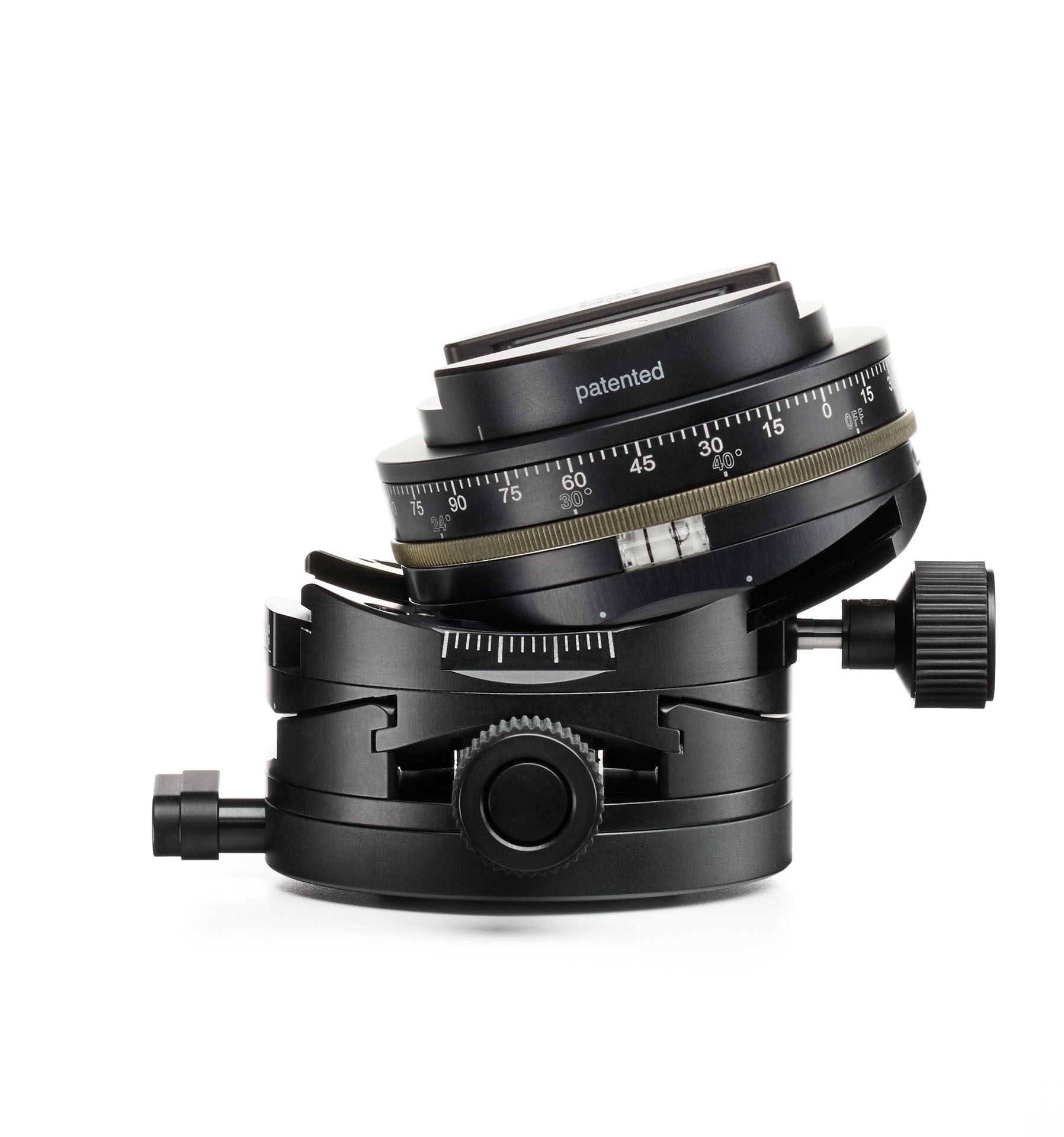

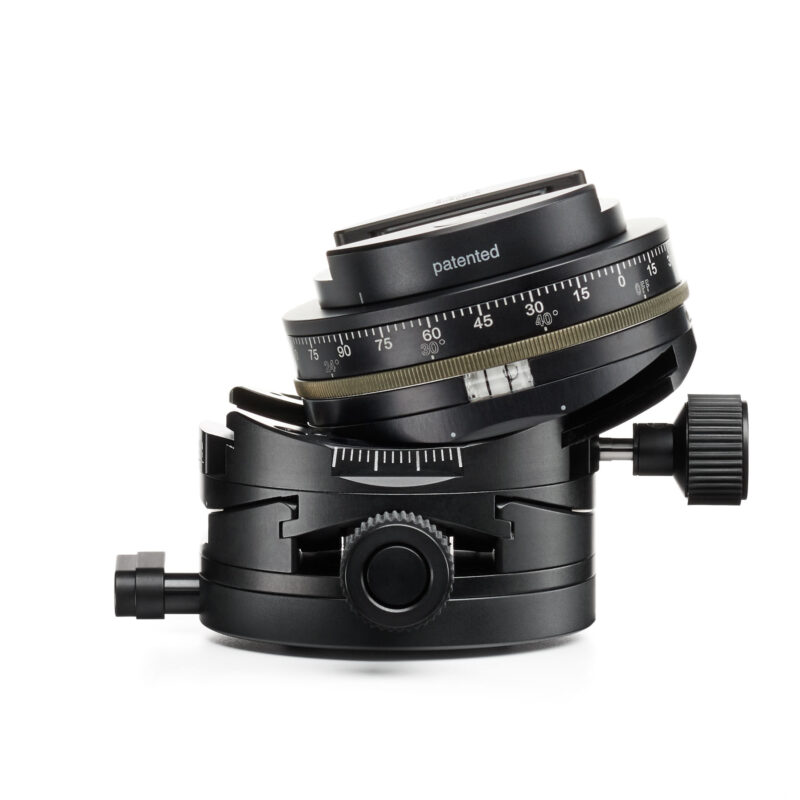

The X and Y axis tilt movements are drawn from those of the C1 Cube, and have their axes of rotation close to the optical centre of the camera. Their adjustment therefore has very little effect on framing and perspective. Fluid and precise movements are provided by two self-locking control knobs. You
simply turn one of the control knobs to make an adjustment and then release it. As on the C1 Cube, the two movements can be operated at the same time when adjusting composition, giving unequalled ease of use and time saving.
Dual Panning:
A lockable panning base located at the bottom of the head is used for coarse-framing
the composition. A second, graduated and lockable precision panning mechanism, located under the quick release, is provided for fine-tuning the composition. Two bubble levels aid precise horizontal control. Once the camera is levelled, top panning keeps it level throughout a 360° arc, perfect for panoramic photography.
Extendable knobs:
For greater comfort the tilt control knobs can be extended on their shafts, making them easier to use—for example, when wearing gloves for taking outdoor shots in cold weather.
clicPan®:
The clicPan® is a low-profile and lightweight mechanism which provides a variable interval top panning base. It can be easily switched from free to angular, step-by-step rotation.
10 positions can be selected on a setting ring – 40° (9 steps), 30° (12 steps), 24° (15 steps), 20° (18 steps), 15° (24 steps), 12° (30 steps), 10° (36 steps), 7.5° (48 steps), 6° (60 stops) with an off position for free panning movement.
Once a setting is chosen, the camera will pan in equal increments, and give a tactile and audible clic as it stops at each set step. The graduated scale around the edge of the base shows the exact angle turned through and a locking lever prevents further movement of the panning base.
ARCA-SWISS is a company of Swiss origin founded over 80 years ago, and is based in Besançon in France, at the heart of the European centre of microtechniques. The company specialises in view cameras (film and digital) and photographic accessories. ARCA-SWISS has built its reputation through developing innovative and highly practical solutions for the most discerning photographers. All its products are designed, made and assembled by hand. They combine robustness, precision and smoothness of movements with the brand’s signature minimalist design. Each ARCA-SWISS product is a long-term investment that will last you a lifetime. It can be serviced or repaired in the manufacturer’s workshops to ensure your continuing enjoyment.
