Description

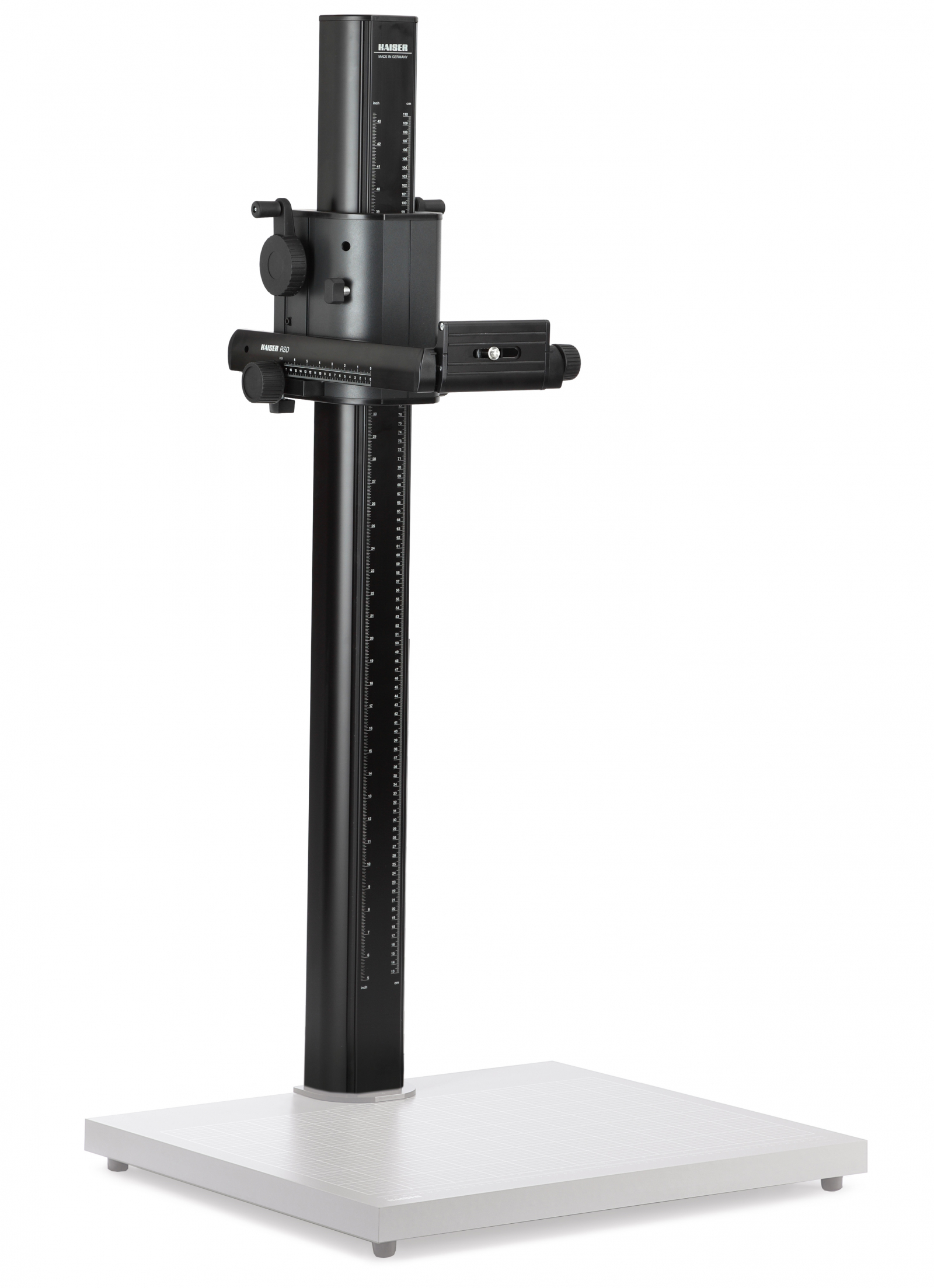

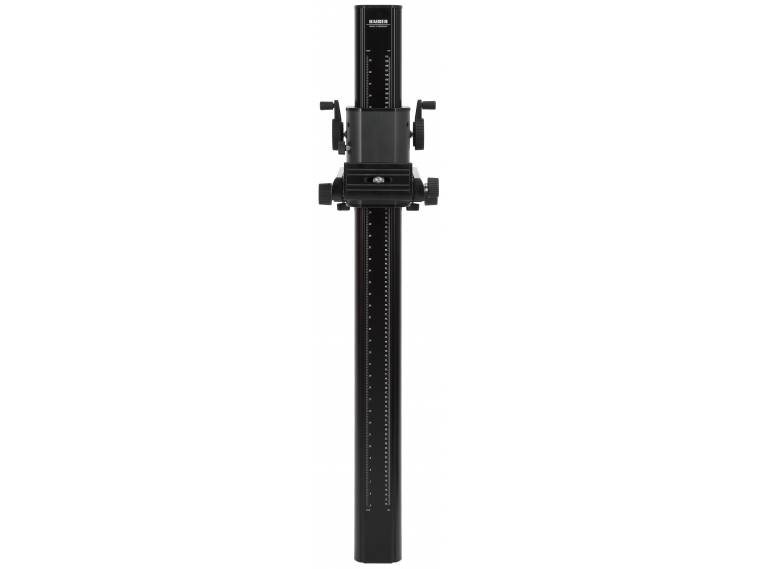

Kaiser RD 1.2 Column (5622)

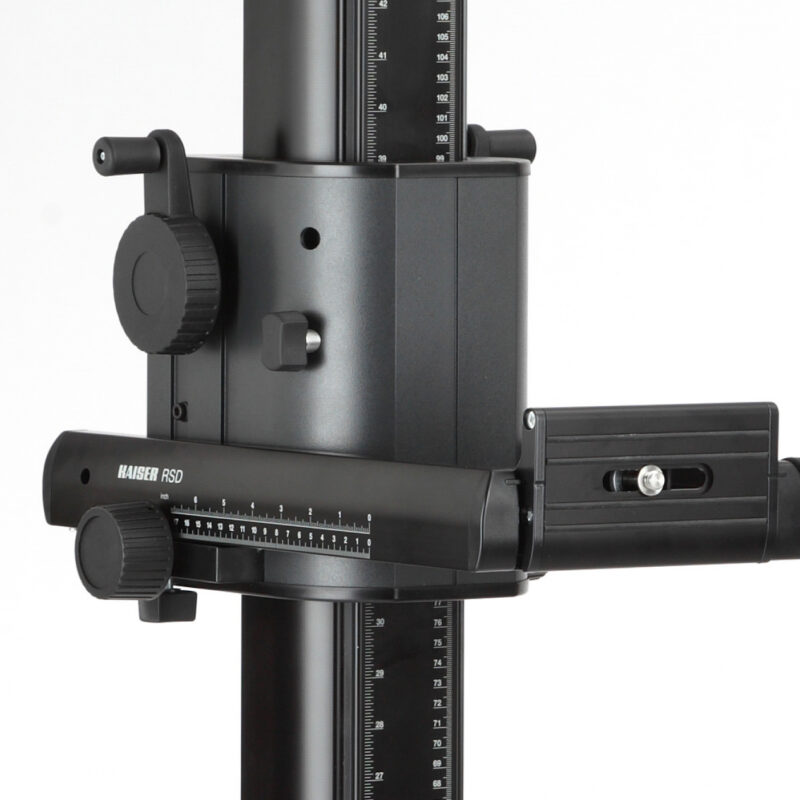

Kaiser RD 1.2 Column (5622). Column made of special aluminum multisection tubing, matt black anodized, with cm and inch scales. Camera carrier made of aluminium section, can be horizontally adjusted over approx. 16 cm (6.3 in.) with rack-and-pinion parallel guides. Left hand/right hand operation, two blocking screws prevent inadvertent changing of the adjusted position. Camera mounting plate tiltable by ยฑ 90ยฐ. Connecting screw horizontally adjustable. Hand-cranked, rack-and-pinion height adjustment, additionally counter-balanced by a built-in coil spring. Blocking screw to stop accidental changing of height.
- Column height: 1.20 m (3.9 ft.)
- Column cross section: 105 x 74 mm (4.1 x 2.9 in.)
- Loading capacity: 8 kg (17.6 lbs.)
- Camera mounting plate: 130 x 78 mm (5.1 x 3.1 in.)
- Reversing mounting thread: 1/4โ / 3/8โ changeable
