Description

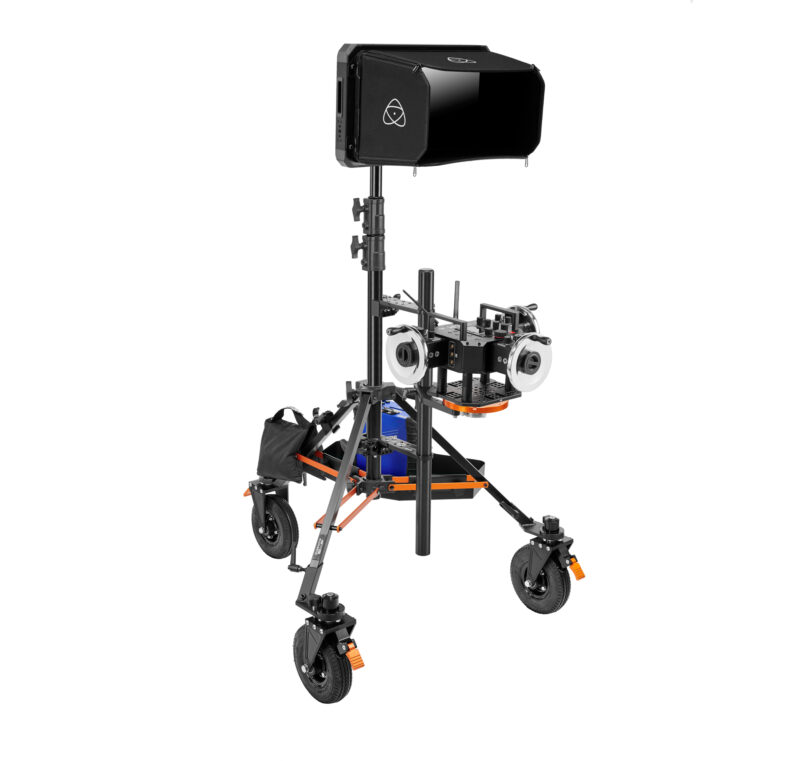

INOVATIV Axis Control Station
The INOVATIV Axis Control Station is a setup with accessories that camera operators, focus-pullers and creatives in a similar industry can utilize.
INOVATIV’s patented vDrop design allows accessories to easily be mounted and removed from the AXIS Stand, by one person, allowing you to customize your workstation.

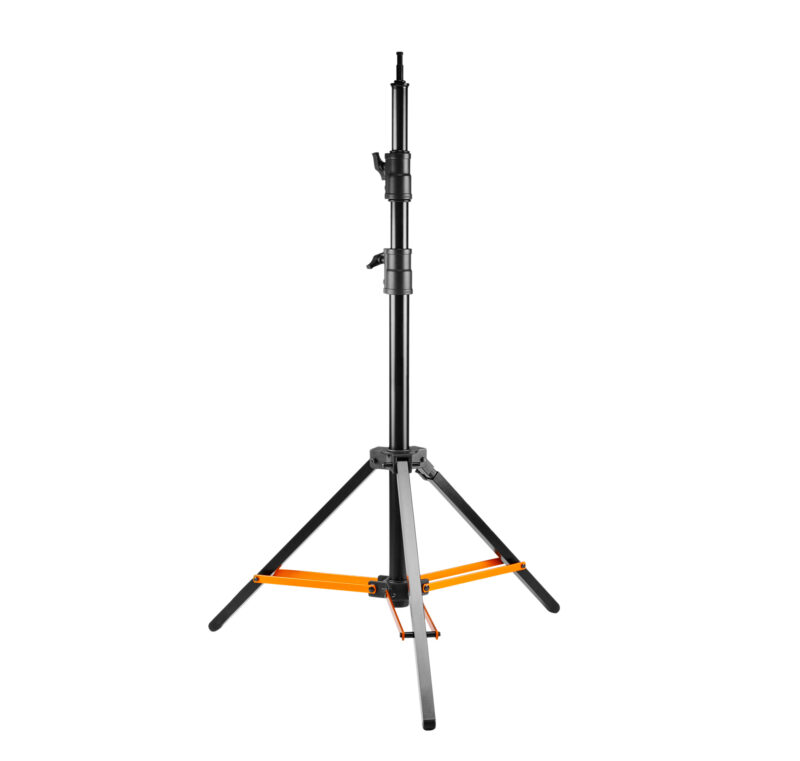

The AXIS Stand, roughly 3’ in diameter, is an aluminum black stand with anodized orange leg straps and is height adjustable. When fully extended it is roughly 79” tall and 50.5” long when collapsed.
A VESA compatible monitor can be attached to the Pro Monitor Mount, which is height adjustable on the riser sections of the AXIS Stand. Whether you like to work with your monitor at eye level or taller, the AXIS Stand’s height adjustability provides you with enough adjustment to find that ideal viewing angle. The Pro Monitor Mount on the stand pin can go as high as 90” or as low as 55”.

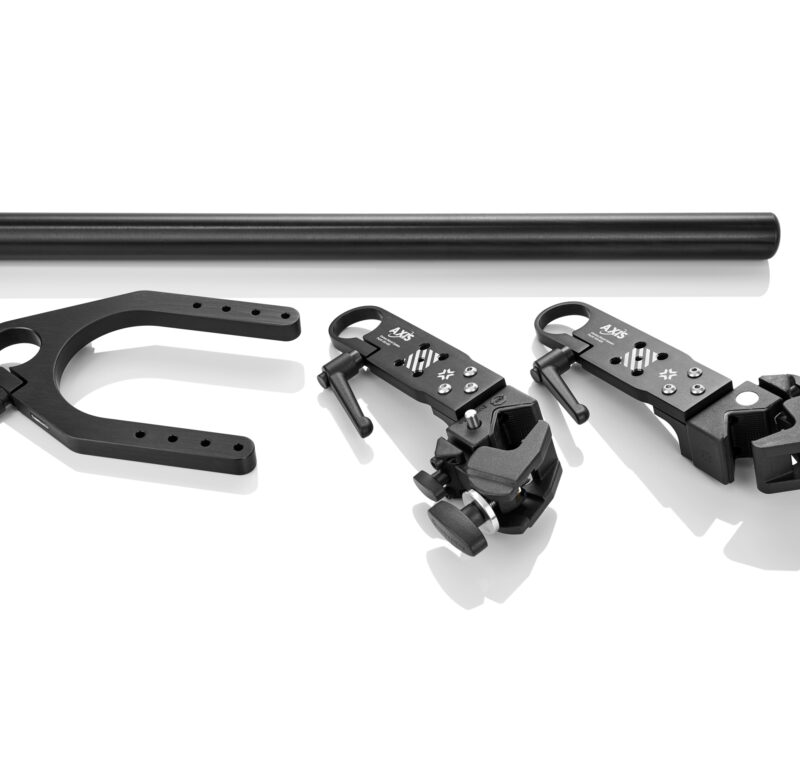

The Camera Mount System is attached to an aluminum mast that’s 1.75” in diameter. It comes with a Horseshoe that is height adjustable and can rotate 360 degrees, allowing you to mount any of our camera plates to it.
The Trough, attached to the base of the stand, provides convenience to store your extra gear; like batteries and accessories to help get the job done.
AXIS Control Station Wheels are INOVATIV’s 8″ premium quick-release wheel system that are designed to offset the center of gravity for increased stability. Each wheel is comprised of both strong steel adapters and lightweight aluminum caster parts that feature 100% sealed bearings and INOVATIV’s powerful foot brakes.
The Weight Hanger is a new accessory that can be attached to one of the AXIS stand legs. It’s a quick release, spring loaded weight hanger that has a hook to attach the included 25 lb Weight Bag to give your setup added security.
