Description

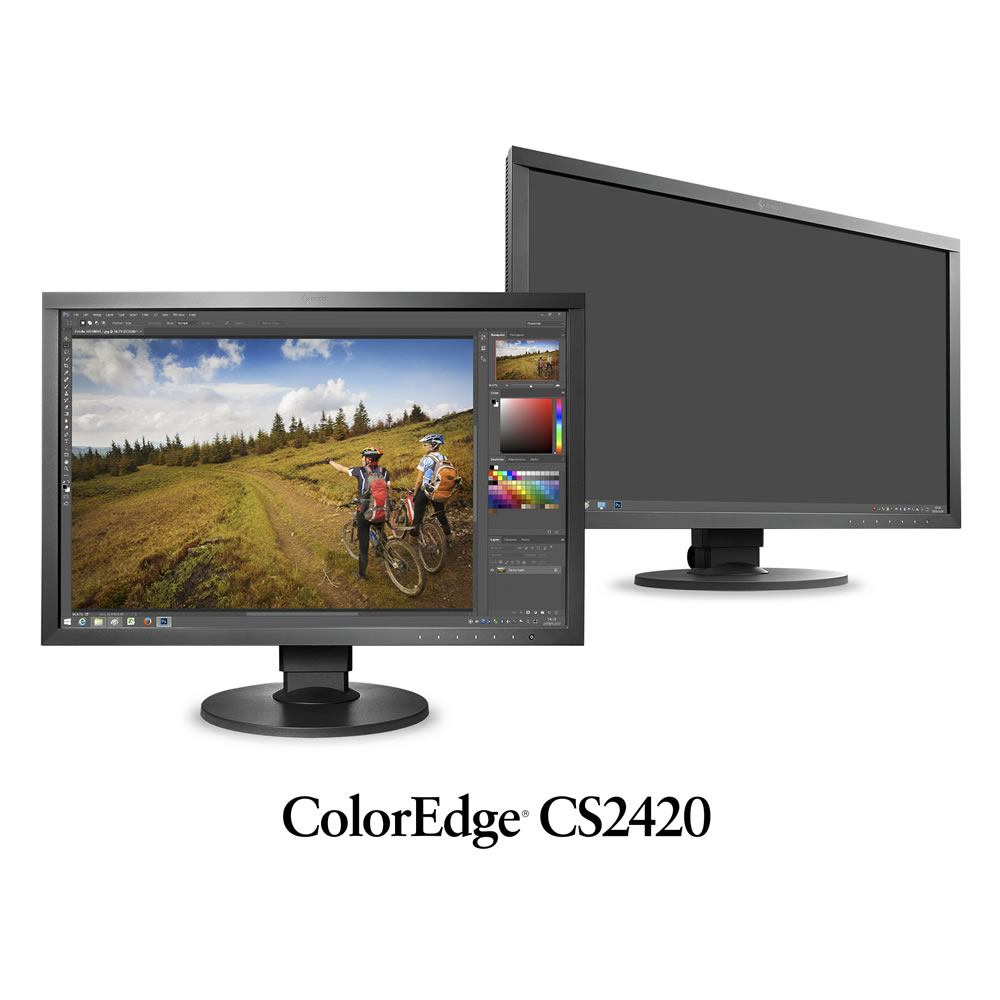

EIZO CS2420 24″ Widescreen IPS Monitor with Height Adjustable Deskstand
The features you need for creative work with a sleek, user-friendly design.
Let your creativity blossom wih this monitor for hobbyists and prosumers. Featuring a sleek, user-friendly design and many of the advanced features of EIZO’s ColorEdge lineup, you can enjoy creating and editing digital photography, illustration, and more.
| Model Variations | CS2420-BK |
|---|---|
| Panel | |
| Type | IPS |
| Backlight | Wide-Gamut LED |
| Size | 24.1″ / 61.1 cm |
| Native Resolution | 1920 x 1200 (16:10 aspect ratio) |
| Viewable Image Size (H x V) | 518.4 x 324.0 mm |
| Pixel Pitch | 0.270 x 0.270 mm |
| Pixel Density | 94ppi |
| Display Colors | DisplayPort, HDMI: 1.07 billion from a palette of 278 trillion DVI: 16.77 million from a palette of 278 trillion |
| Viewing Angles (H / V, typical) | 178°, 178° |
| Brightness (typical) | 350 cd/m2 |
| Recommended Brightness for Calibration | 120 cd/m2 or less |
| Contrast Ratio (typical) | 1000:1 |
| Response Time (typical) | 15 ms (gray-to-gray) |
| Color Gamut (typical) | Adobe RGB: 99% |
| Video Signals | |
| Input Terminals | DisplayPort (HDCP 1.3), HDMI (Deep Color, HDCP 1.4), DVI-D (HDCP 1.4) |
| Digital Scanning Frequency (H / V) | DisplayPort, DVI: 26 – 78 kHz, 24 – 61 Hz HDMI: 15 – 78 kHz, 24 – 61 Hz |
| USB | |
| Upstream | USB 3.1 Gen 1: Type-B |
| Downstream | USB 3.1 Gen 1: Type-A x 3 (Battery Charging 10.5 W max. x1) |
| Power | |
| Power Requirements | AC 100 – 240 V, 50 / 60 Hz |
| Typical Power Consumption | 26W |
| Maximum Power Consumption | 92W |
| Power Save Mode | 0.7W or less |
| Features & Functions | |
| Digital Uniformity Equalizer | Yes |
| Preset Modes | Custom, Adobe RGB, sRGB, Calibration |
| OSD Languages | English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese |
| Others | Color Adjustment, Input Color Format, Input Range, Noise Reduction, I/P Conversion, Picture Expansion, Menu Rotation, Power Save, Input Skip, Mode Skip, Key Lock, DUE Priority |
| Physical Specifications | |
| Dimensions (Landscape, W x H x D) | 554.4 x 396 – 551 x 245 mm |
| Dimensions (Without Stand, W x H x D) | 554.4 x 362 x 64 mm |
| Net Weight | 7.8 kg / 17.2 lbs |
| Net Weight (Without Stand) | 5.0 kg / 11.0 lbs |
| Height Adjustment Range | 155 mm |
| Tilt | 35° Up, 5° Down |
| Swivel | 344° |
| Pivot | 90° |
| Hole Spacing (VESA Standard) | 100 x 100 mm |
| Environmental Requirements | |
| Operating Temperature | 0 – 35°C |
| Operating Humidity (R.H., non condensing) | 20 – 80% |
| Certifications & Standards (Please contact EIZO for the latest information.) | CB, CE, TUV/GS, cTUVus, FCC-B, CAN ICES-3 (B), TUV/S, PSE, VCCI-B, RCM, EAC, RoHS, WEEE, TUV/Ergonomics |
| Dedicated Software | |
| Easy Screen-to-Print Color Matching Tool Quick Color Match | Supported |
| Proprietary Software | |
| Color Management Software ColorNavigator 7 | Supported |
| Color Management Software ColorNavigator 6 | Supported |
| Supplied Accessories (May vary by country. Please contact EIZO for details.) | |
| Signal Cables | DisplayPort (2 m), HDMI (2 m) |
| Others | AC power cord, USB Type-A – USB Type-B cable (2 m), Setup guide, Quick reference, Warranty card, VESA mounting screw x 4 |
| Warranty | Five Years 2 5 Zero bright sub-pixels for six months from date of purchase |
