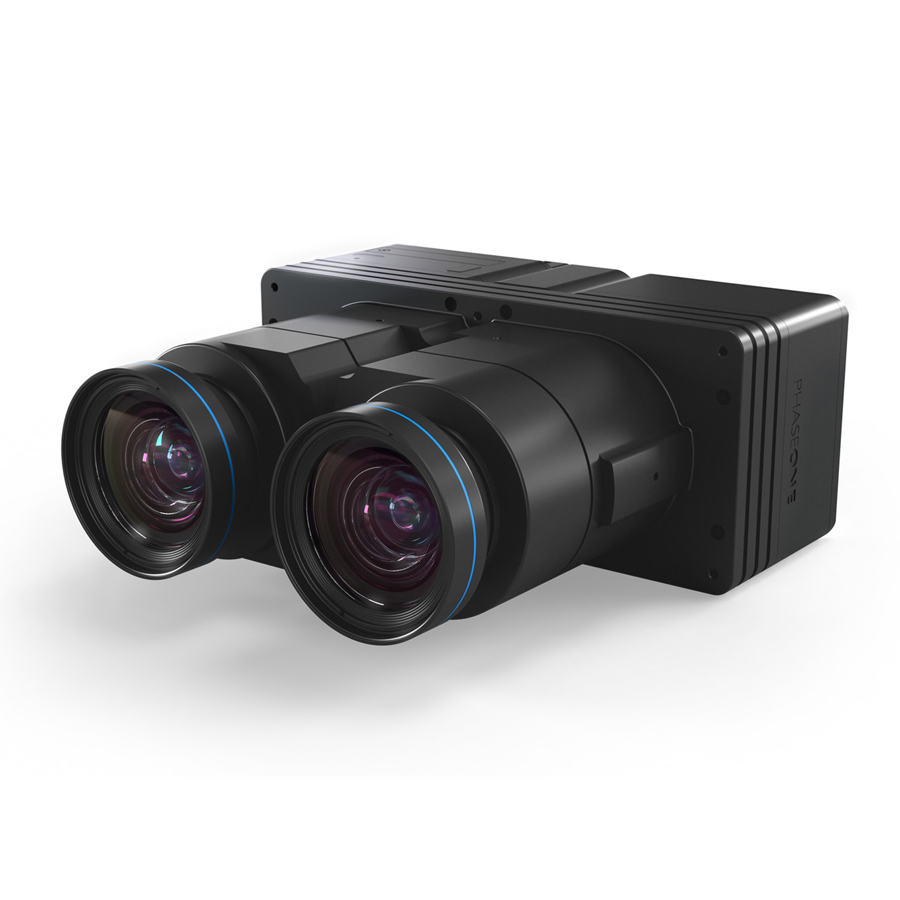

[spb_text_block animation=”none” animation_delay=”0″ simplified_controls=”yes” custom_css_percentage=”no” padding_vertical=”0″ padding_horizontal=”0″ margin_vertical=”0″ custom_css=”margin-top: 0px;margin-bottom: 0px;” border_size=”0″ border_styling_global=”default” width=”1/1″ el_position=”first last”]The iXU-RS1900 dual lens camera presents an excellent alternative to traditional large format cameras in diverse aerial mapping applications; from remote sensing, through precision agriculture, disaster management and monitoring.
[/spb_text_block] [spb_blank_spacer height=”70px” width=”1/1″ el_position=”first last”] [spb_row row_responsive_vis=”hidden-xs_hidden-sm” element_name=”iXU-RS1900″ wrap_type=”full-width-stretch” row_bg_type=”color” color_row_height=”content-height” bg_type=”cover” parallax_image_height=”content-height” parallax_image_movement=”fixed” parallax_image_speed=”standard” bg_video_loop=”yes” parallax_video_height=”window-height” row_top_style=”none” row_bottom_style=”none” parallax_video_overlay=”none” row_overlay_opacity=”0″ remove_element_spacing=”no” row_col_spacing=”0″ row_col_pos=”default” row_col_equal_heights=”no” row_expanding=”no” row_animation=”none” row_animation_delay=”0″ minimize_row=”no” simplified_controls=”yes” custom_css_percentage=”no” custom_css=”margin-top: 0px;margin-bottom: 0px;” border_styling_global=”default” width=”1/1″ el_position=”first last”] [spb_section spb_section_id=”69765″ width=”1/1″ el_position=”first last”] [/spb_row] [spb_row row_responsive_vis=”hidden-lg_hidden-md” element_name=”iXU-RS1900″ wrap_type=”full-width-stretch” row_bg_type=”color” color_row_height=”content-height” bg_type=”cover” parallax_image_height=”content-height” parallax_image_movement=”fixed” parallax_image_speed=”standard” bg_video_loop=”yes” parallax_video_height=”window-height” row_top_style=”none” row_bottom_style=”none” parallax_video_overlay=”none” row_overlay_opacity=”0″ remove_element_spacing=”no” row_col_spacing=”0″ row_col_pos=”default” row_col_equal_heights=”no” row_expanding=”no” row_animation=”none” row_animation_delay=”0″ minimize_row=”no” simplified_controls=”yes” custom_css_percentage=”no” custom_css=”margin-top: 0px;margin-bottom: 0px;” border_styling_global=”default” width=”1/1″ el_position=”first last”] [spb_section spb_section_id=”69769″ width=”1/1″ el_position=”first last”] [/spb_row] [spb_blank_spacer height=”70px” width=”1/1″ el_position=”first last”] [spb_row element_name=”iXU-RS 1900 Camera Specifications” wrap_type=”standard-width” row_bg_type=”color” color_row_height=”content-height” bg_type=”cover” parallax_image_height=”content-height” parallax_image_movement=”fixed” parallax_image_speed=”standard” bg_video_loop=”yes” parallax_video_height=”window-height” row_top_style=”none” row_bottom_style=”none” parallax_video_overlay=”none” row_overlay_opacity=”0″ remove_element_spacing=”no” row_col_spacing=”0″ row_col_pos=”default” row_col_equal_heights=”no” row_expanding=”no” row_expading_text_closed=”Show iXU-RS 1900 Camera Specifications” row_expading_text_open=”Close Camera Specifications” row_animation=”none” row_animation_delay=”0″ minimize_row=”yes” simplified_controls=”yes” custom_css_percentage=”no” custom_css=”margin-top: 0px;margin-bottom: 0px;” border_styling_global=”default” width=”1/1″ el_position=”first last”] [spb_text_block animation=”none” animation_delay=”0″ simplified_controls=”yes” custom_css_percentage=”no” padding_vertical=”0″ padding_horizontal=”0″ margin_vertical=”0″ custom_css=”margin-top: 0px;margin-bottom: 0px;” border_size=”0″ border_styling_global=”default” width=”1/1″ el_position=”first last”]Phase One cameras offer reliability and versatility for users looking for a full-featured medium format aerial camera. Easily integrated into existing or new setups, the camera offers maximum connectivity with systems
[/spb_text_block] [spb_text_block animation=”none” animation_delay=”0″ simplified_controls=”yes” custom_css_percentage=”no” padding_vertical=”0″ padding_horizontal=”0″ margin_vertical=”0″ custom_css=”margin-top: 0px;margin-bottom: 0px;” border_size=”0″ border_styling_global=”default” width=”1/1″ el_position=”first last”]| Camera | iXU-RS1900 | iXU-RS1900 4-Band | ||
| Frame / Image Specifications | ||||
| Frame geometry | Central projection | “ | ||
| Image size (pixel) | 16,470 x 11,540 | “ | ||
| Image volume (MP) | 190 | “ | ||
| Color | RGB | RGB, NIR, CIR, 4-Band | ||
| Pansharpen ratio | N/A | 1:1.8 | ||
| Frame width for 10 cm GSD (m) | 1,647 | “ | ||
| Frame height for 10 cm GSD (m) | 1,154 | “ | ||
| Frame area for 10 cm GSD (sq.km) | 1.92 | “ | ||
| Typical image size (MB) For TIFF | 570 | 760 | ||
| Image format | PhaseOne RAW, Undistorted TIFF, JPEG | |||
| Lenses type | Rodenstock | “ | ||
| Number of lenses | 2 | 3 | ||
| Focal length (mm) | 90 | 90 & 50 | ||
| FOV (across flight, deg) | 45.7 | “ | ||
| FOV (along flight, deg) | 33.0 | “ | ||
| Aperture | f/5.6 | “ | ||
| Exposure principle | Leaf shutter | “ | ||
| Exposure (sec) | 1/2000 to 1/2500 | “ | ||
| Image capture rate (sec) | 0.6 | “ | ||
| Light Sensitivity (ISO) | 50-6400 | “ | ||
| Dynamic Range (db) | >84 | “” | ||
| NIR Options | N/A | NIR Filter 830nm | ||
| Sensor Specifications | ||||
| Sensor type | CMOS | “ | ||
| Sensor number | 2 | 3 | ||
| Pixel size (µm) | 4.6 | “ | ||
| Array (pix) | 11,608 x 8,708 | “ | ||
| Analog-to-digital-conversion (bit) | 14 | “ | ||
| Flight Specifications | ||||
| Maximal ground speed for 10 cm GSD with motion blur under 1 pixel (knot) | 385 | “ | ||
| Maximal forward overlap for 10 cm GSD at 150 knot (%) | 96 | “ | ||
| Maximal orthophoto angle for 20% side overlap (deg) | 37 | “ | ||
| Flight altitude for 10cm GSD (feet) | 6400 | “ | ||
| Operating Conditions | ||||
| Power input (V) | 12-30 V DC | |||
| Maximal Power consumption (W) – camera only | 20W | |||
| Humidity (non-condensing, %) | 15 to 80 | |||
| Temperature (° C) | -10 to 40 | |||
| Mechanical Specifications | ||||
| iXU-RS1900 | ||||
| Total weight (kg/Lb) | 4.7 / 10.3 | |||
| Size (WxHxL,cm) | 22.5 x 9.7 x 21.8 | |||
| Connection to Pod | Six M4 bolts | |||
| Approvals | FCC (Class A), CE, RoHS | |||
| iX Controller MKIII | ||||
| On-board storage capacity (TB) | 1.0 | |||
| On-board storage type | SSD | |||
| On-board storage exchangeability | Yes | |||
| Optional Interfaces | ||||
| Pilot monitor for navigation | YES | |||
| Operator monitor for camera management | YES | |||
| Gyro-stabilizer | SOMAG DSM400 | |||
| INS/GNSS | Applanix, NovAtel, and more | |||
| iX Controller MKIII | up to 6 separate USB3 ports Power and Control Outputs – Camera, GNSS, Mount |
|||
| * Mechanical Central Shutter with up to 500,000 cycles | ||||
| **RGB – Red/Green/Blue; NIR – Near Infra-Red; CIR – Color Infra-Red; 4-Band – RGB&NIR | ||||
| ***SSD – Solid State Drive | ||||
