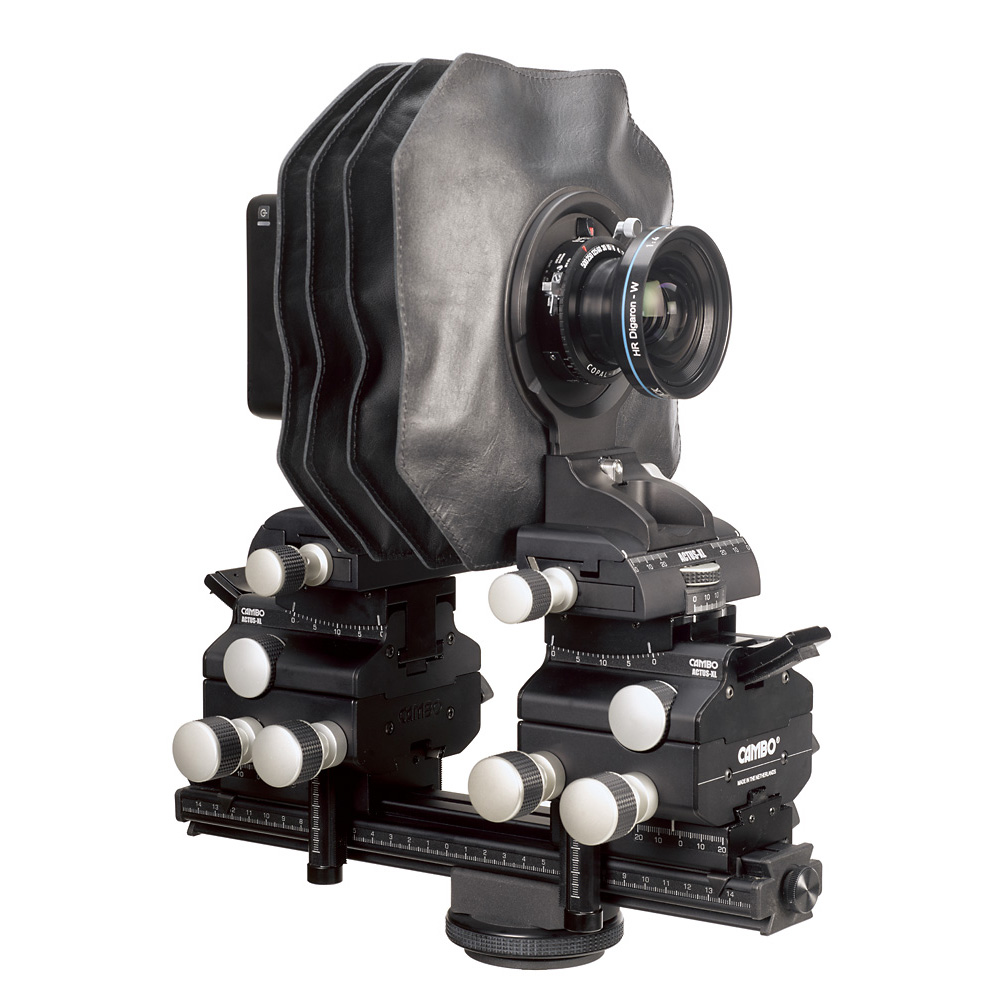

Cambo Actus-XL View Camera
The Cambo ACTUS-XL is a new view camera system, evolved from the ACTUS and ULTIMA series.
Where the Actus Mini excels in being the lightest and smallest camera platform, the ACTUS-XL system is a fusion of both the Actus and Ultima camera platforms, maintaining full camera movements. Modular is the keyword. The Actus-XL accepts all Actus lens plates and lens adapters, sharing the same mount. On the rear standard you find an easy exchangeable frame holder for either a digital back or a DSLR/Mirrorless camera body.
Both front and rear standard have lateral movements, vertical adjustments, swings as well as tilts, all for optimised control over perspective and selective sharpness. With the use of full view camera movements the photographer will be able to be more versatile, be more creative and will be getting more professional results much faster than before.
The default 300mm monorail is suitable for short, medium and long focal length lenses. A separate focus slider and fine focussing racks make it not only quick but very easy and precise to focus.
When using a digital back, the upright holder will accept any of the Cambo SLW-adapters. For photographers that are using digital backs without Live View, there is an adapter mount available for the Cambo sliding back. There are lens panels available for #0, #1 as well as #3 shutter systems, both mechanical and electronic lenses can be used.
Cambo ACTUS-XL-DB Specifications:
|
Size L / W / H:
|
31 x 14,5 x 34 cm
|
|
Weight:
|
4800 grams
|
|
Swing:
|
+20/-20 degrees both front and rear
|
|
Tilt:
|
+20/-20 degrees both front and rear
|
|
Shift Vertical:
|
40mm (20/20) both front and rear
|
|
Shift Horizontal:
|
50mm (25/25) both front and rear
|
|
Max. Extension: (lensplate to sensor)
|
170mm (with standard monorail)
(of which 40mm in fine focussing)
|
|
up to 320mm (with optional monorail extension)
|
|
|
up to 420mm (with optional macro-extension)
|
|
Lens plates options:
|
Copal 0
|
|
Copal 1 (Copal 3 on request)
|
|
|
Adapting plate for short barrel Alpa lens panels
|
|
|
Adapting plate for short barrel WideRS lens panels
|
|
|
Available Colour:
|
Black anodised
|
Cambo ACTUS-XL-35 Specifications:
|
Size L / W / H:
|
31 x 14,5 x 31,5 cm
|
|
Weight:
|
4800 grams
|
|
Swing:
|
+20/-20 degrees both front and rear
|
|
Tilt:
|
+20/-20 degrees both front and rear
|
|
Shift Vertical:
|
40mm (20/20) both front and rear
|
|
Shift Horizontal:
|
50mm (25/25) both front and rear
|
|
Max. Extension (lensplate to sensor):
|
up to 185mm (Sony E-mount)
|
|
|
up to 205mm (Nikon F-mount)
|
|
|
up to 201mm (Canon EOS-mount)
|
|
Lens plates options:
|
Copal 0, Copal 1
|
|
|
M39 Leica thread
|
|
|
Hasselblad C Bayonet
|
|
|
Mamiya 645 Pro bayonet (non-DF)
|
|
|
Mamiya RZ/RB bayonet
|
|
|
Pentax-645 bayonet
|
|
|
Leica R Bayonet (for mirror less bodies only)
|
|
|
Nikon-F Bayonet (for mirror less bodies only)
|
|
|
Canon-EOS bayonet (for mirror less bodies only)
|
|
Available Colours:
|
Black anodised
|
